CR1

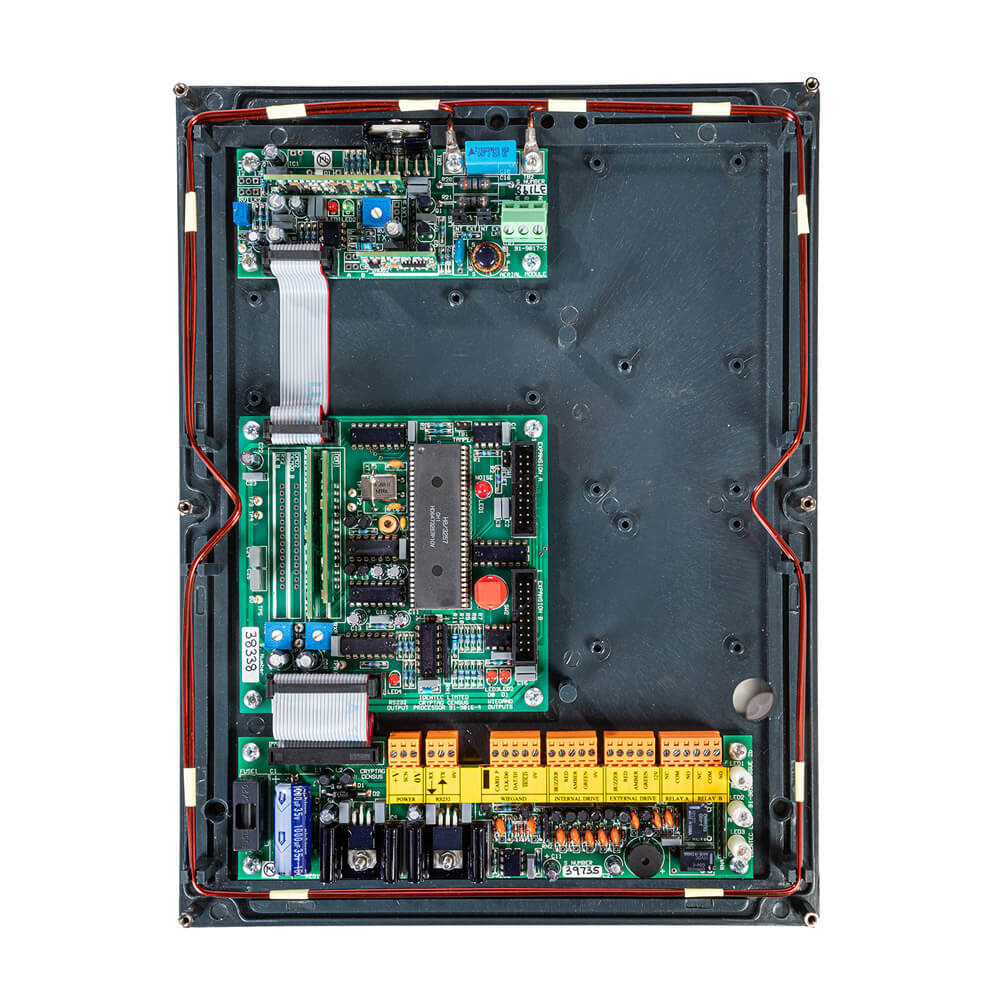

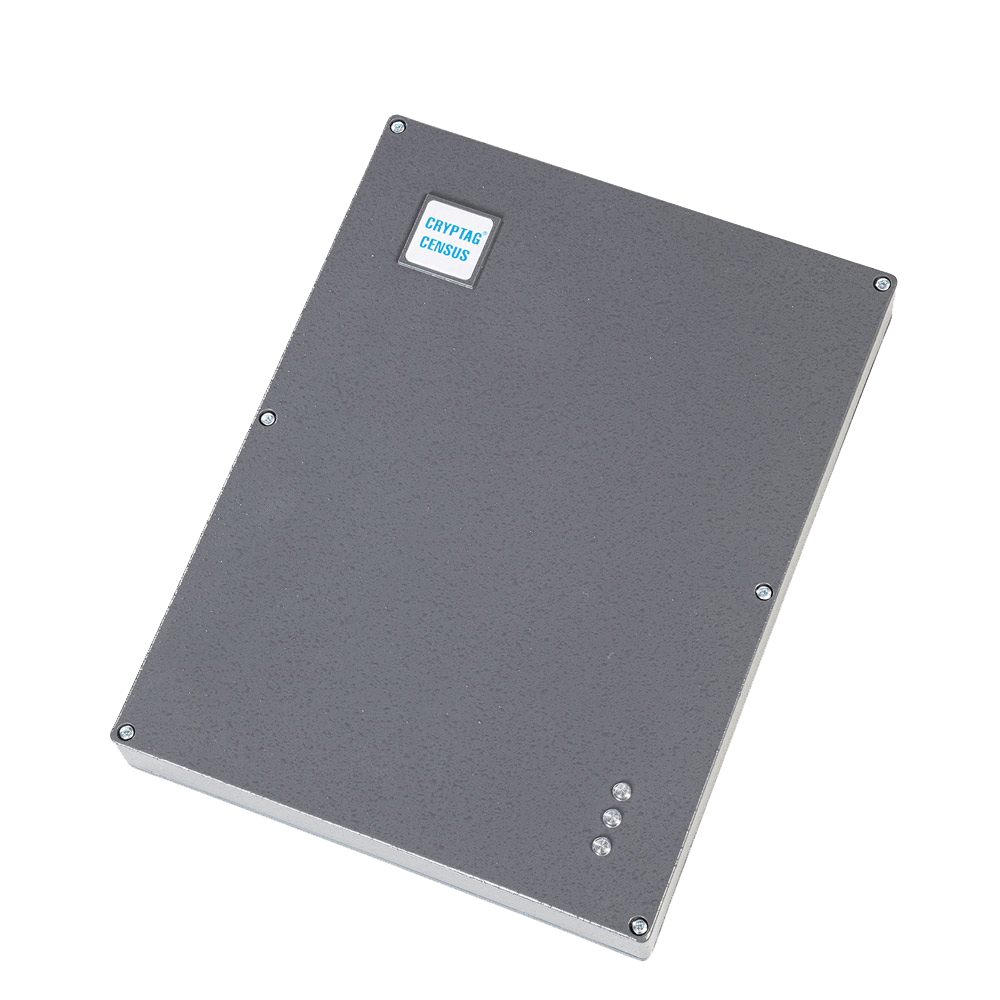

The CR1 Census® reader comprises a single loop aerial and reader electronics that are compatible with all Census® tags. The radio-frequency communications are scrambled.

The unit is supplied with an internal aerial that provides a maximum detection zone of 1.2 metres radius when used with standard TC1 Census® tags. The detection zone may be increased by the use of an external aerial. A reading range of up to 3.0 metres is possible using a 2 metre square external antenna (See Census® Product Matrix for further information).
All CR1 readers provide Wiegand or Clock & Data, as well as RS232 output. Advanced features include local alarm outputs, a print option and an optional counter display (See IDN1, EDN1 for further information). MatchMaker reader firmware enables tag pairing.

The product is suitable for numerous applications, they include but are not limited to:

  • Hands Free Access Control
  • Car Parking Control
  • Personnel Identification
  • Personnel & Product Tracking
  • Sports Timing
Cr1 01 Cr1 02 Cr1 03 Cr1 04

Applications

Access Control

Convenient touch free technology to easily manage access to your locations.

Safety

Automatic staff registration for safety roll call or attendance registration through real-time alerts and accurate location information.

Article Tagging

Hands free tagging allowing complete hands-free access control, monitoring the whereabouts of assets.

Car Parking

Create an intelligent parking system where the entry and exit of cars are monitored, with vehicle or driver identification, or both.

Technical Specification

Specification Details
Power requirements 12-26 Volts @ 300mA
Dimensions 300 x 230 x 80mm
Weight 1.4kg
Temperature range -20 to +60°C (non condensing)
Housing Charcoal Grey ABS case
LED function RED internally/externally controlled
AMBER internally/externally controlled
GREEN internally/externally controlled
Noise indication, Data Sent Indication
Output Formats Wiegand or Clock & Data & RS232
Terminations 2.5mm removable connectors

Resources

Downloadable files containing technical information about CR1
