Asv 01 394x

AS-01

The Census® CRx range of readers are frequently used with external aerial(s). The AS-01 aerial is suitable for internal and external locations.

The Census® CRx range of readers are frequently used with external aerial(s). The AS-01 aerial is suitable for internal and external locations.

When used with a Census® CRx reader, reading ranges of up to 2 metres can be achieved on both sides of the aerial.

Features

  • Hands-Free operation (2 metres)
  • Pre-tuned
  • Easy to install.

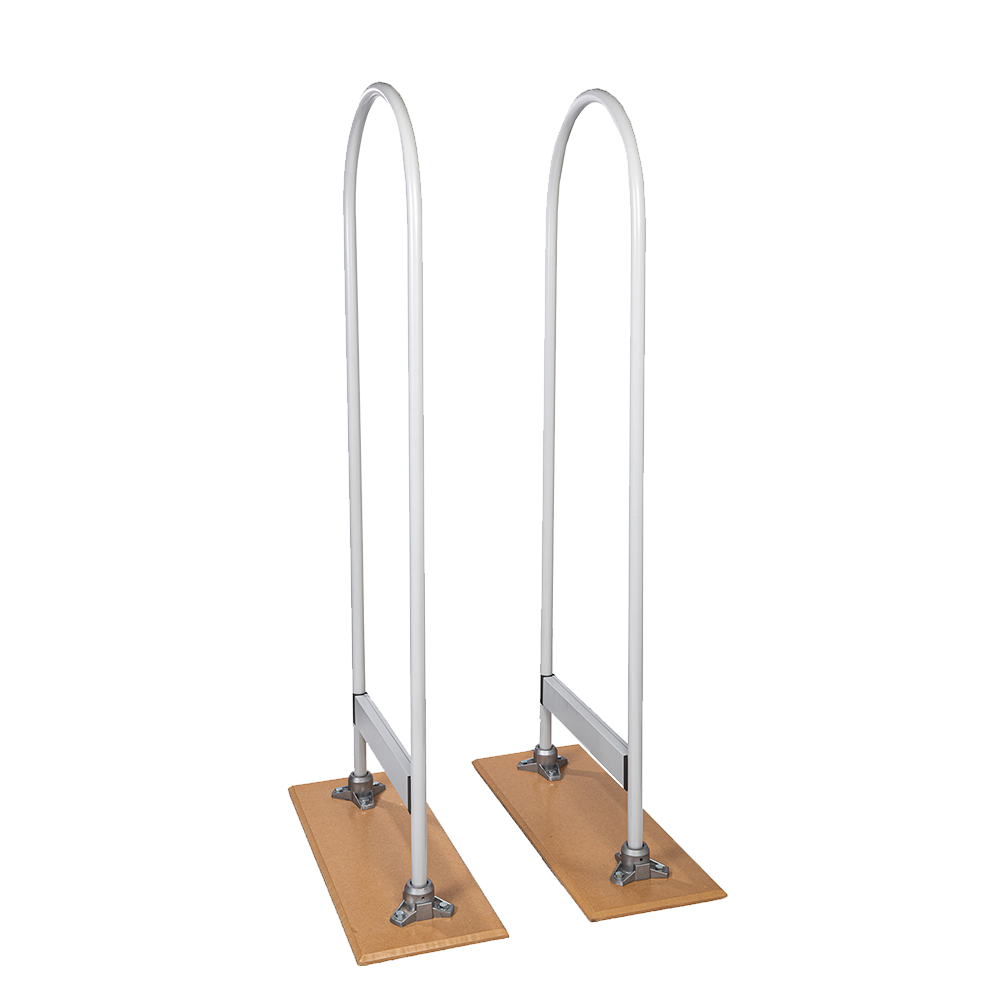

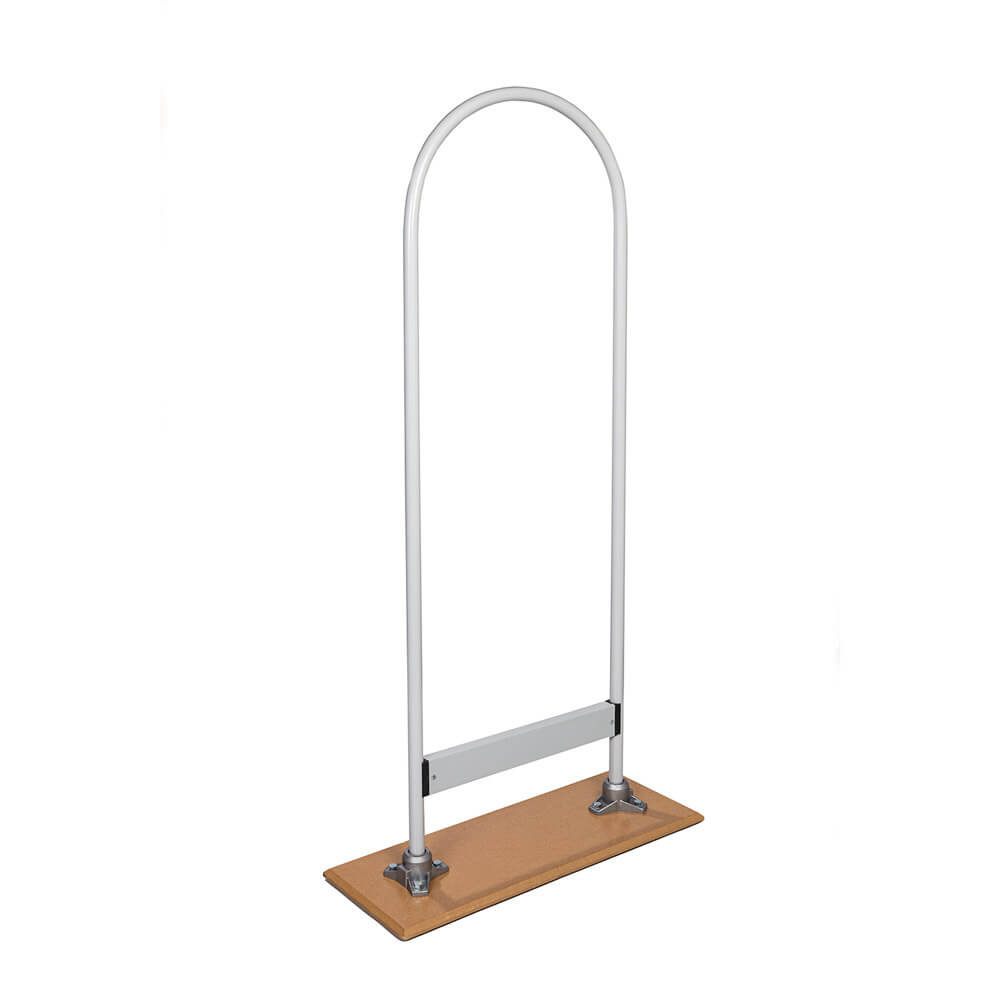

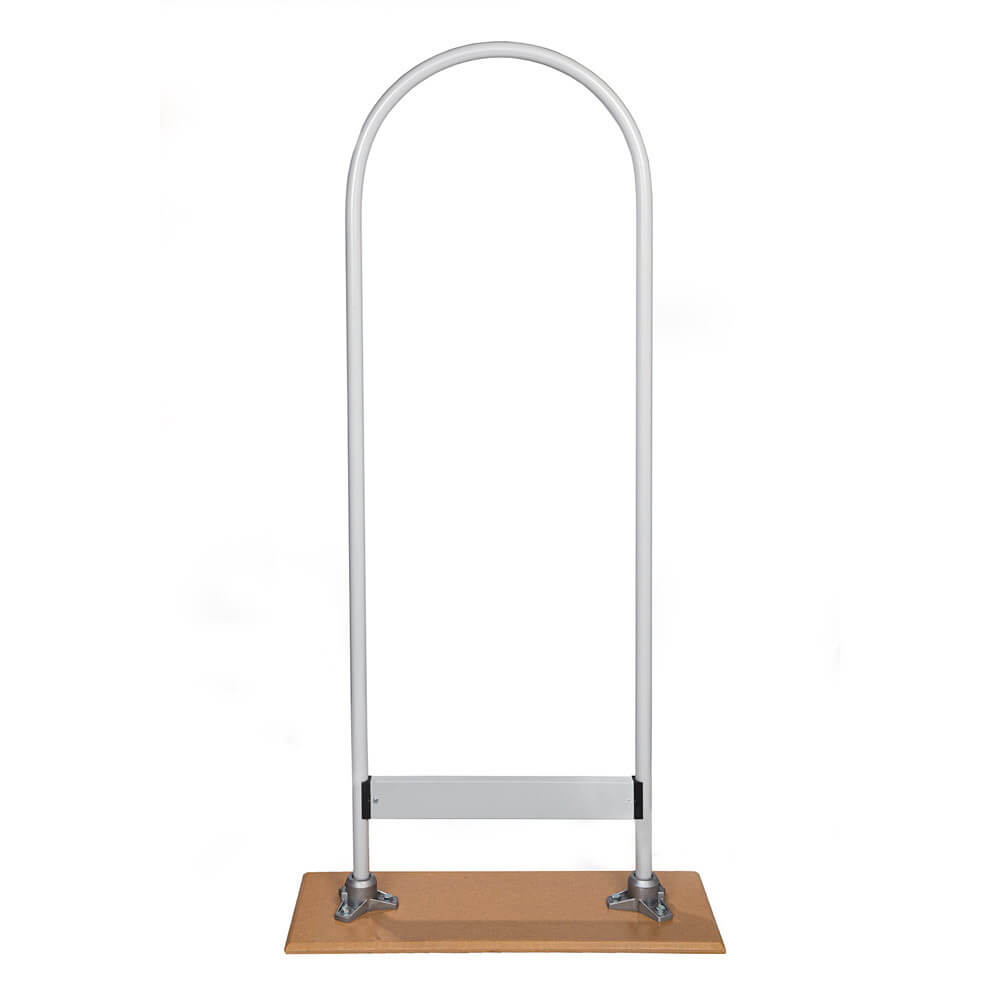

Asv 01 394x Asv 01 390x Asv 01 388x

Technical Specification

Specification AS-01
Dimensions 1700mm x 565mm x 32mm
Weight 4.5kg
Temperature range -20 to +60°C(non condensing)
Material Heavy-Duty Powder Coated Aluminium Tube
Terminations Screw Terminal within crossbar



Applications

The product is suitable for numerous applications, they include but are not limited to:

  • Mass Evacuation
  • Hands-Free Access Control
  • Parking Control Vehicle ID, Driver ID or Both
  • Personnel Identification
  • Personnel & product Tracking.

Ordering Information

Ordered as AS-01 (AS-01A - USA system).

Comprises:

  • 1 x Aerial
  • 1 x foot - Side Entry
  • 1 x foot - Vertical Entry
  • 3 x Nylon foot washers
