ELC1

The Census®

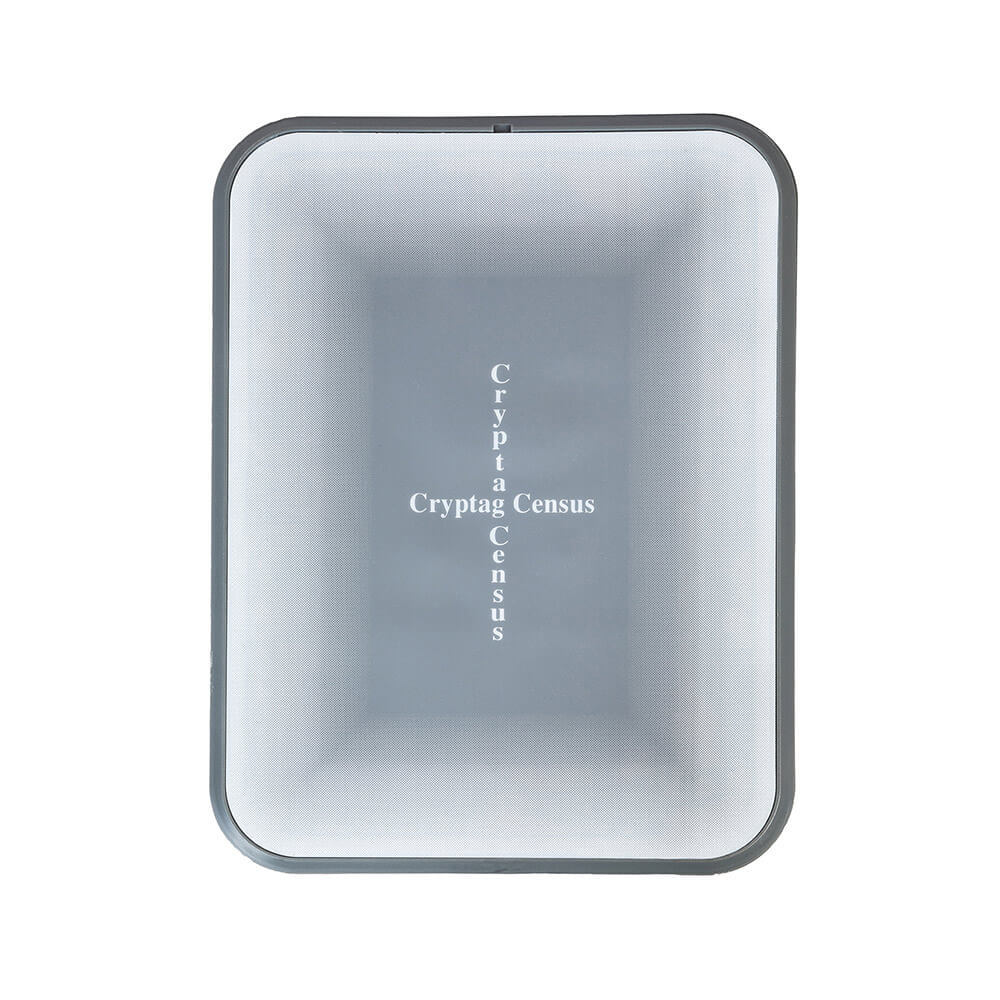

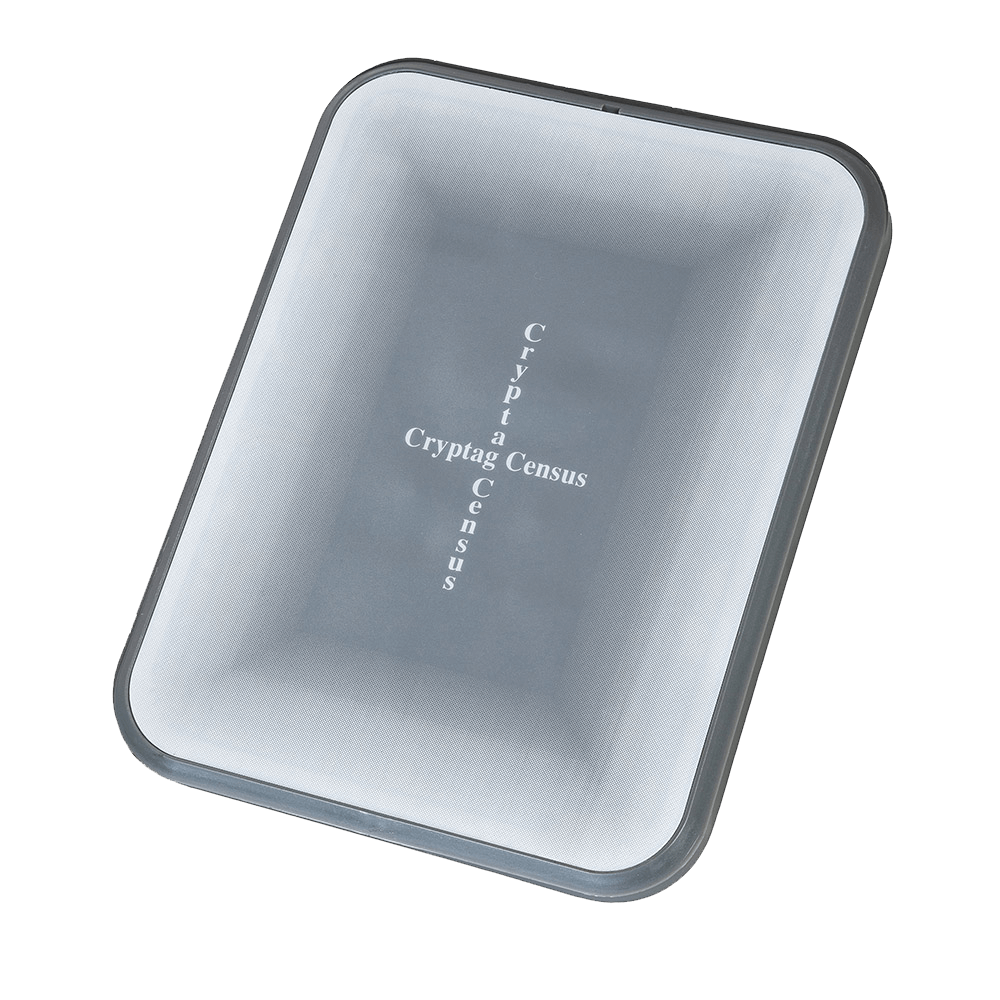

The Census® "Label" reader can simultaneously interrogate tags up to 1.0 metre from the reader's face. The range can be reduced to 500mm using a selector link. The RF communications between each Census® tag and reader are scrambled to eliminate the chance of simulated
tokens being used.

The "Label" reader is suitable for flush mounting directly on a wooden door when it produces a profile of 4.5mm. A 10mm spacer is provided to enable surface mounting on glass or other surfaces. The unit is designed to secure directly to a standard electrical switch back box for flush mounting on a wall. It is also suitable for pole mounting when used for car park applications.

The reader can be configured with a number of output options including "open format" 26 bit Wiegand, special format Wiegand or Clock & Data. These outputs are complemented with an RS232 compatible serial output as standard, thus enabling two data acquisition systems to be addressed simultaneously.

The product is suitable for numerous applications, they include but are not limited to:

  • Hands Free Access Control
  • Car Parking Control

Applications

Access Control

Convenient touch free technology to easily manage access to your locations.

Car Parking

Create an intelligent parking system where the entry and exit of cars are monitored, with vehicle or driver identification, or both.

Technical Specification

Specification Details
Power requirements 6 to 18 volts DC @ 70mA
Dimensions 214 x 163 x 4.5mm
Weight 240g
Temperature range -20°C to +60°C (non condensing)
Housing Charcoal ABS with Polycarbonate label insert
LED function RED internally controlled
GREEN externally controlled
Noise indication, Data Sent Indication
Output Formats ELC1 - Standard 26 bit Wiegand
ELC2 - Customer specific formats
(Wiegand, Clock & Data and Serial Data)
Terminations 10 way screw terminal

Reading ranges vary with the type of tag and the reader model used, please refer to the Census® Products Matrix for further information.
