TC5

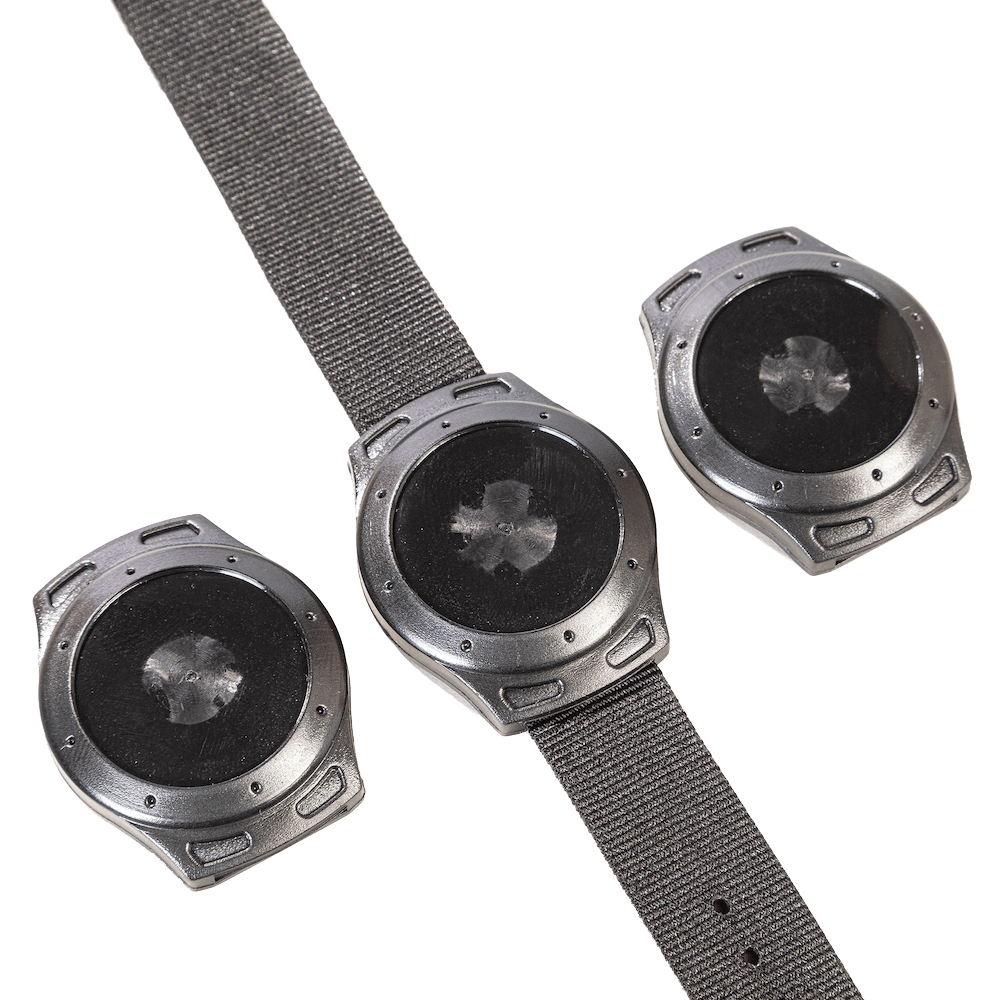

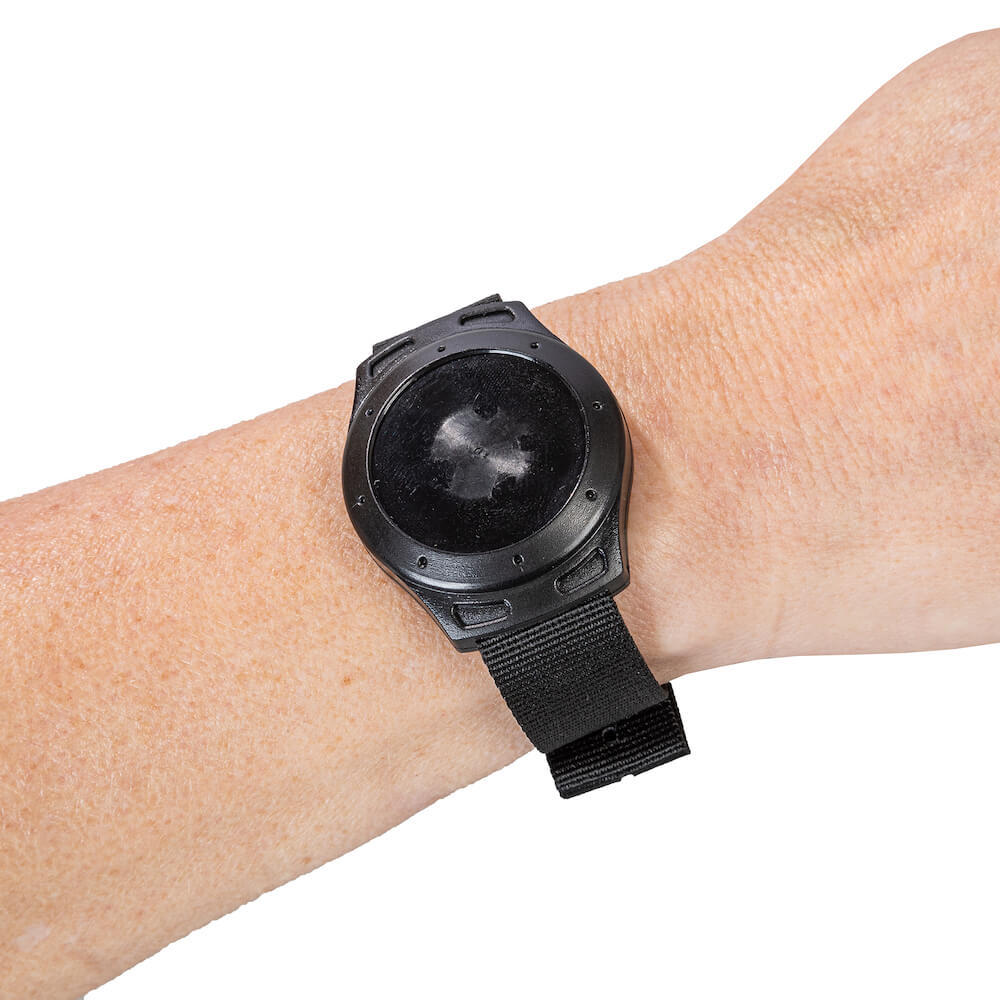

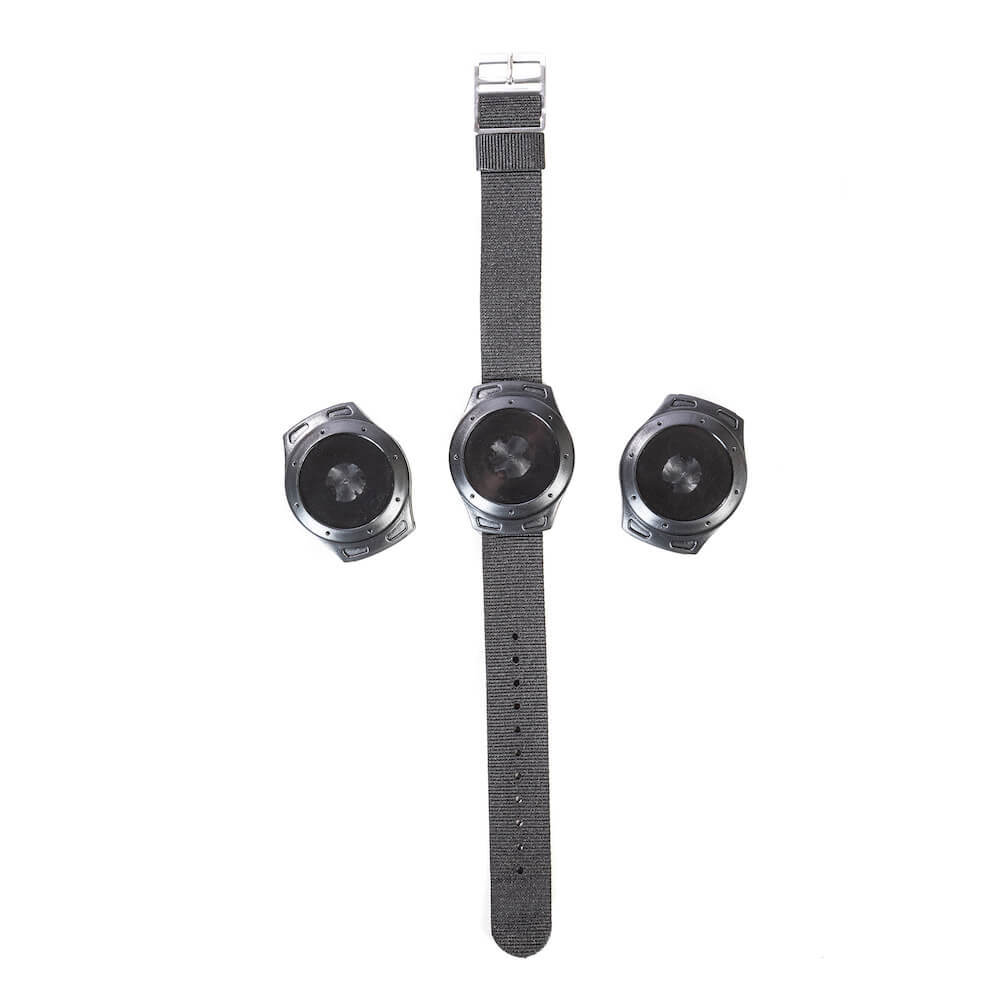

The TC5 is an extremely versatile hands free tag that is normally supplied in a wrist tag housing suitable for attachment to a hospital identity bracelet or nylon wrist strap designed for watches.

The tag components are incorporated in a coin-shaped screw in the module. This design provides OEMs with the perfect building block for custom-designed housings, opening up new market opportunities in both traditional security markets and the automatic identification sector.

The TC5 tag is the latest in a range of tags and readers manufactured by Identec Ltd and which make up the Census® product line. Designed with the OEM market in mind the TC5 tag enables clients to cover numerous applications with a single tag design simply by switching the housing for each tag. The TC5 tag is suitable for wrist and ankle tags, fob tags, and disk tags.

Important Notice: Protect Your Identec Tags from Wireless Charging Interference

Wireless chargers rely on high-powered magnetic induction, which can disrupt nearby electronics, including Identec Tags. To prevent potential damage, never place your Identec Tags near or on wireless chargers, as the strong magnetic fields can impair or permanently harm the tags.

For best performance and longevity, always keep your Identec Tags clear of wireless charging zones.

Features

Hands-Free Reading Range
Fast Identification of Uniquely Numbered Tags (typically 55/sec)
Accurate Identification (1:100 million error rate worst case)
No-Tag Separation Necessary
Replaceable Battery
Reads Through Any Material (other than metal) Without Range Loss
Numerous Applications.
Also available in ATEX (Intrinsically safe) approved version.

Applications

Access Control

Convenient touch free technology to easily manage access to your locations.

Safety

Automatic staff registration for safety roll call or attendance registration through real-time alerts and accurate location information.

Car Parking

Create an intelligent parking system where the entry and exit of cars are monitored, with vehicle or driver identification, or both.

Technical Specification

The current wrist/ankle tag design provides a water resistant seal. The replaceable battery provides typically 1 year operational life based upon 6 minutes of interrogation daily. The tag provides a warning via the readers when the battery requires changing. Unlike other Census® tags the TC5 will operate in very close proximity to other TC5 tags without reducing the speed of reading.

The TC5 is available in standard and ATEX (Intrinsically safe) approved versions, the ATEX version is supplied exclusively through Davis Derby Ltd. (www.davisderby.com).

Specification	Details
Dimensions	46 x 37 x 10mm
Dimensions of tag insert	35mm dia, 4mm high
Temperature range	-20 to +60°C (non condensing)
Housing	Black ABS
Weight with case (without case)	12g (5g)
Colour	Black

Applications

The product is suitable for numerous applications, they include but are not limited to:

Personnel Tracking - ATEX (Intrinsically safe) version available for hazardous environments.
Patient Tracking
Wanderer Control
Tool Tracking
Sample Tracking

Resources

Downloadable files containing technical information about TC5

TC5 Data Sheet

/files/pdf/tc5.pdf

Download

619.49KB
