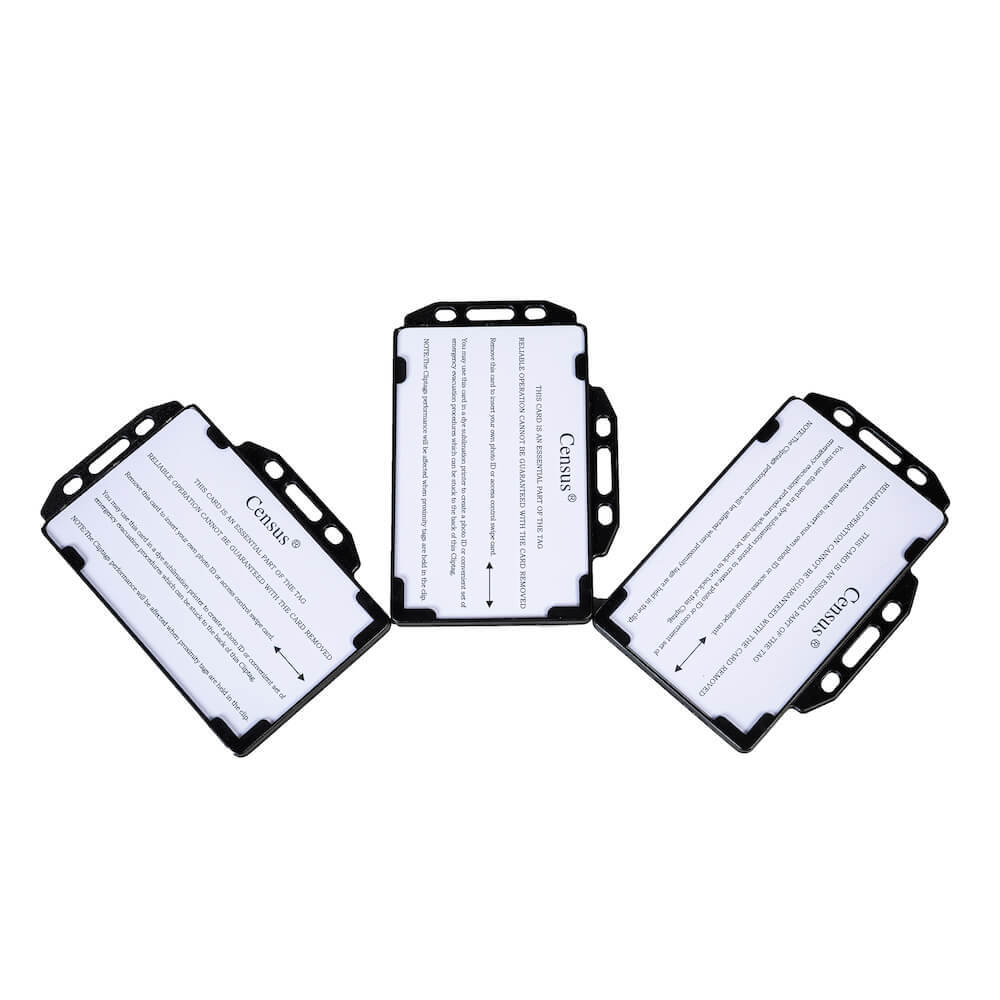

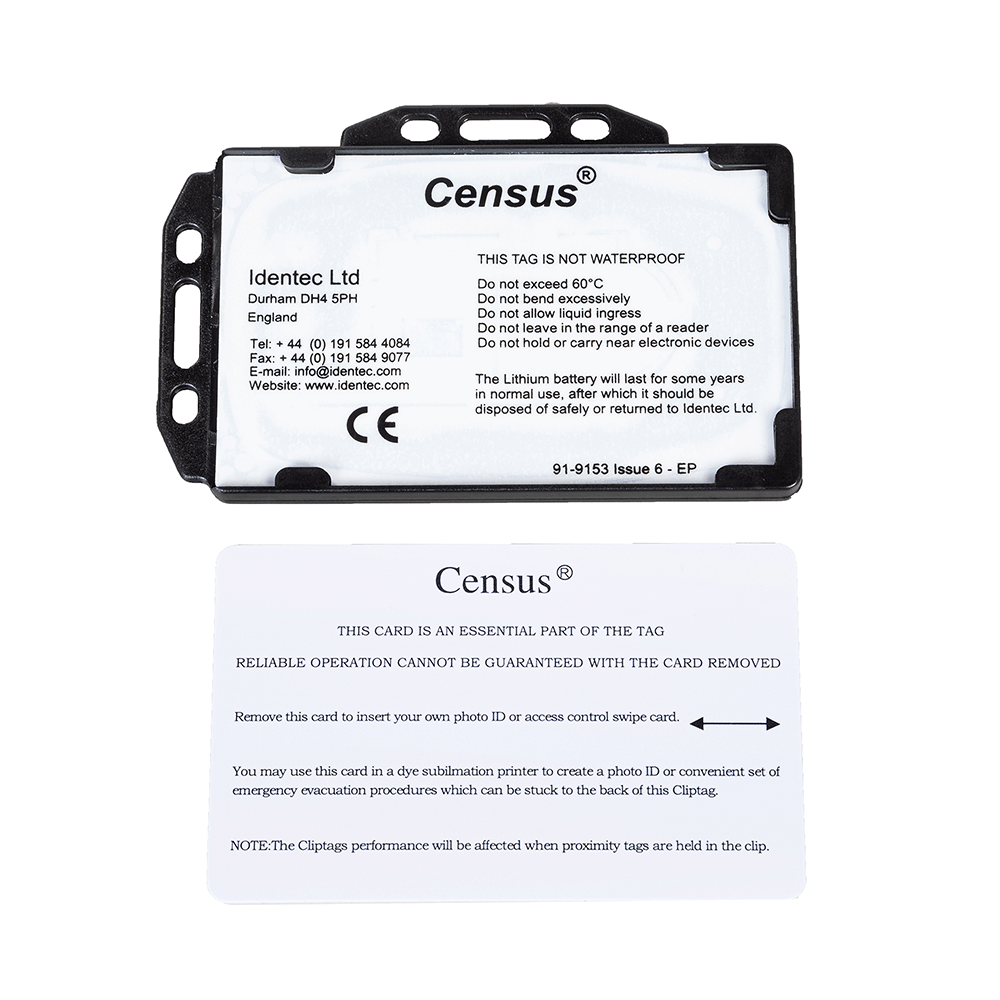

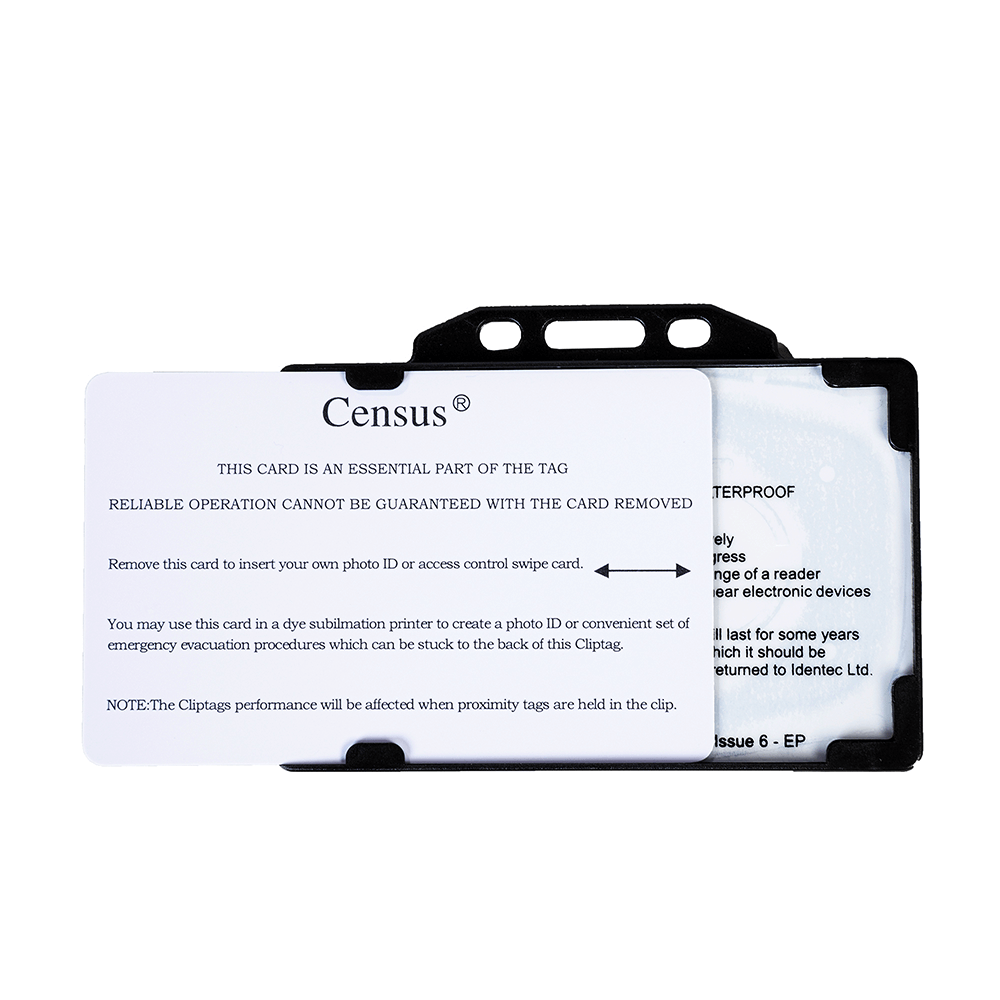

TC6

Census® tags can be simultaneously interrogated with no loss of fidelity. The RF communication between each tag and reader is scrambled to eliminate the chance of simulated tokens being used. Battery low indication is a standard feature.

Census® patented technology offers many benefits to systems designers, integrators, and end users. Not least of these is that the tags do not interfere with other electronic surveillance systems resulting in false alarms etc. The typical error rate for Census® is 1:100 million in worst case noise, this is significantly better than any other tag system. Census® tags can be supplied with a fixed one time programmed 32 or 64-bit code. Strict factory audits ensure no two tags are issued with the same ID number.

Important Notice: Protect Your Identec Tags from Wireless Charging Interference

Wireless chargers rely on high-powered magnetic induction, which can disrupt nearby electronics, including Identec Tags. To prevent potential damage, never place your Identec Tags near or on wireless chargers, as the strong magnetic fields can impair or permanently harm the tags.

For best performance and longevity, always keep your Identec Tags clear of wireless charging zones.

Features

Long Life Active Personnel Tag
Replaceable Battery
Portrait or Landscape Card Display
Photo ID
Various Base Colours Available
Dormant Outside Of Census Reader Fields
One Time Programmable 32 or 64 bit Tags
Hands-Free Reading up to 3 Metres
Battery Low Indication
Encrypted Data Exchange
1:100 Million Error Rate
CE, DTI & FCC Approved.

Applications

Access Control

Convenient touch free technology to easily manage access to your locations.

Safety

Automatic staff registration for safety roll call or attendance registration through real-time alerts and accurate location information.

Car Parking

Create an intelligent parking system where the entry and exit of cars are monitored, with vehicle or driver identification, or both.

Technical Specification

TC6 has a shelf life of 7 years or greater stored at 20°C. Operational life depends upon usage. However based upon 36 uses per day of 10 seconds each, or 6 minutes continuous interrogation per day, typical cell life at 20°C is 3 years or greater. All Census® product operates in the temperature range -20°C to +60°C.

Specification	Details
Dimensions	95 x 64 x 5mm
Weight	18g
Temperature range	-20 to +60°C (non condensing)
Housing	Polycarbonate with Polyvinyl label insert
Colour	White or black (Other colours available)

Applications

The product is suitable for numerous applications, they include but are not limited to:

Hands-Free Access Control
Conference & Exhibition ID
Time and Attendance
Emergency Evacuation Monitoring
Personnel Safety
Car Parking Access
Personnel Identification
Personnel Tracking.

Resources

Downloadable files containing technical information about TC6

TC6 Data Sheet

/files/pdf/tc6.pdf

Download

221.42KB
