Specification | AVR1 Details |
Power requirements | 5V DC, (supplied by RV1-RVR1 reader) |
Dimensions | 127 x 75 x 45mm |
Weight | 185g |
Temperature range | -20 to +60°C non condensing |
Housing | Light grey ABS with Polycarbonate label |
Head amp LED function | RED - Remove capacitance GREEN- Add capacitance AMBER- Tag read |
Test tag LED function | RED- Power AMBER-Failed GREEN-Scanning |

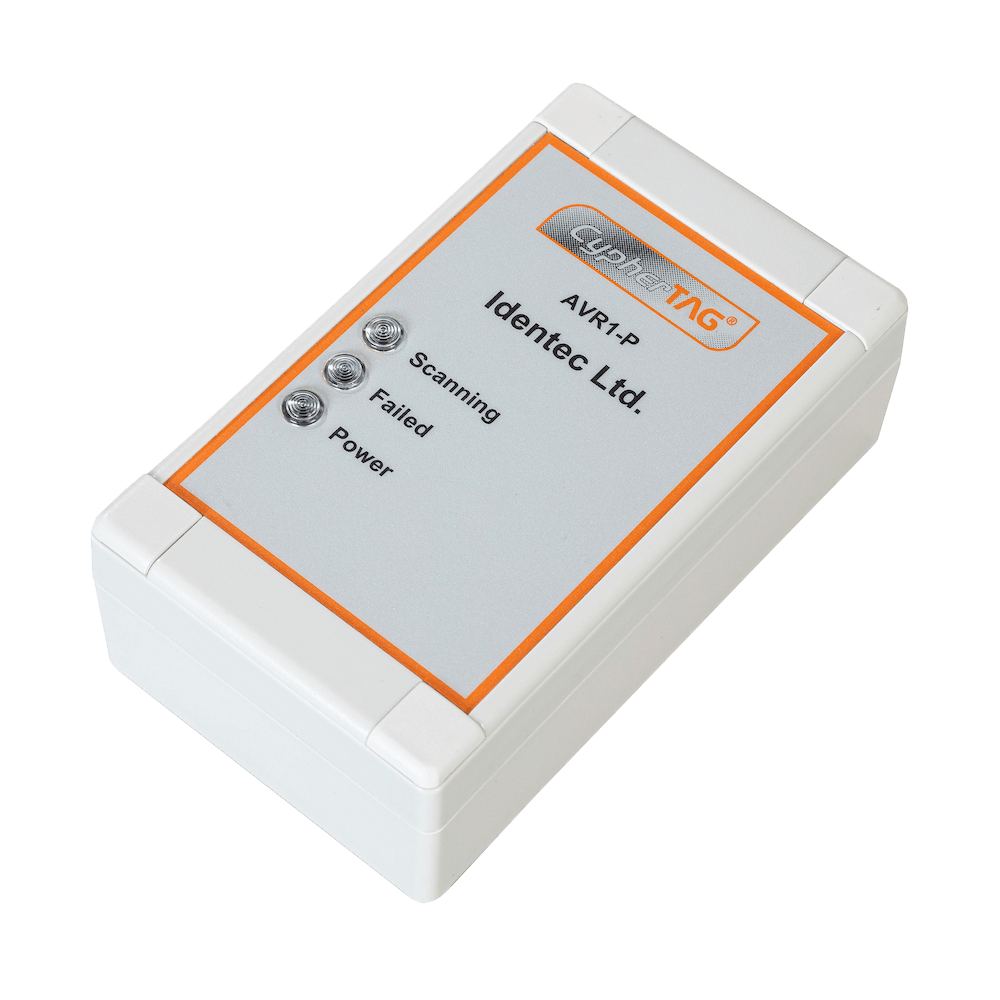

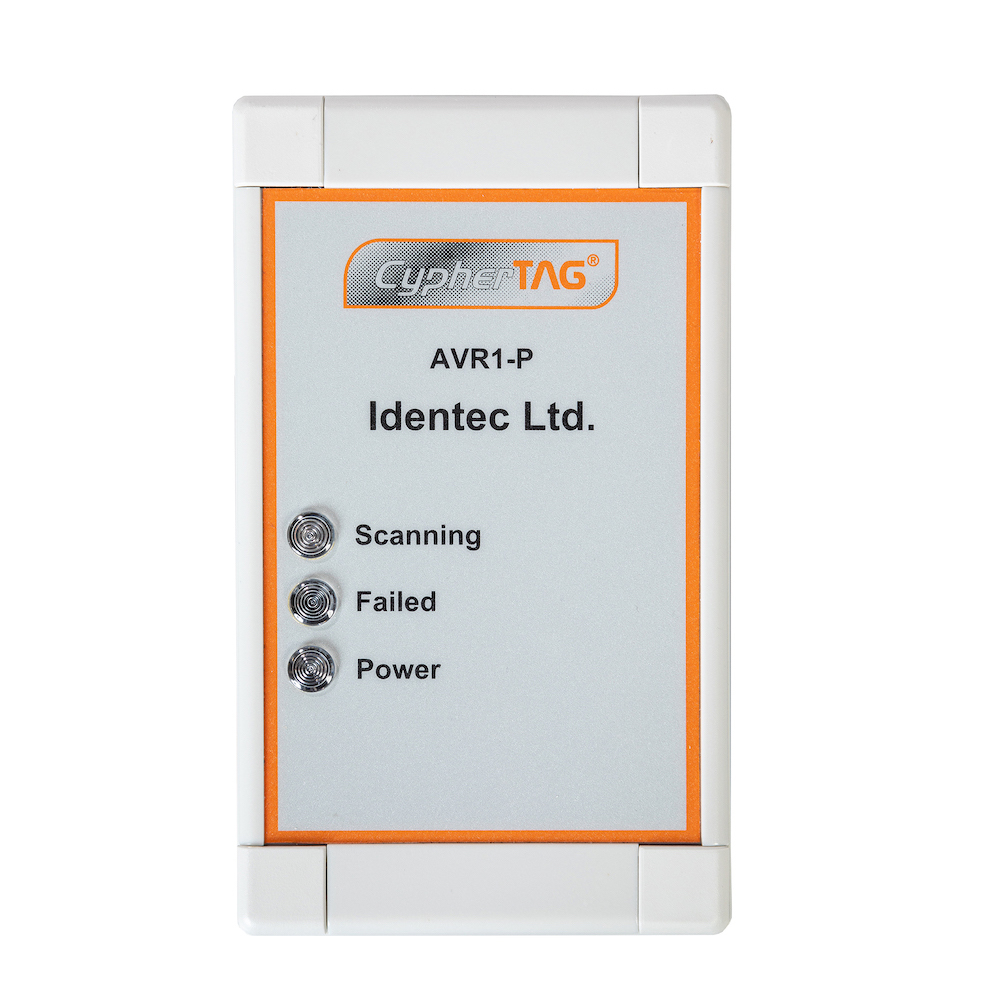

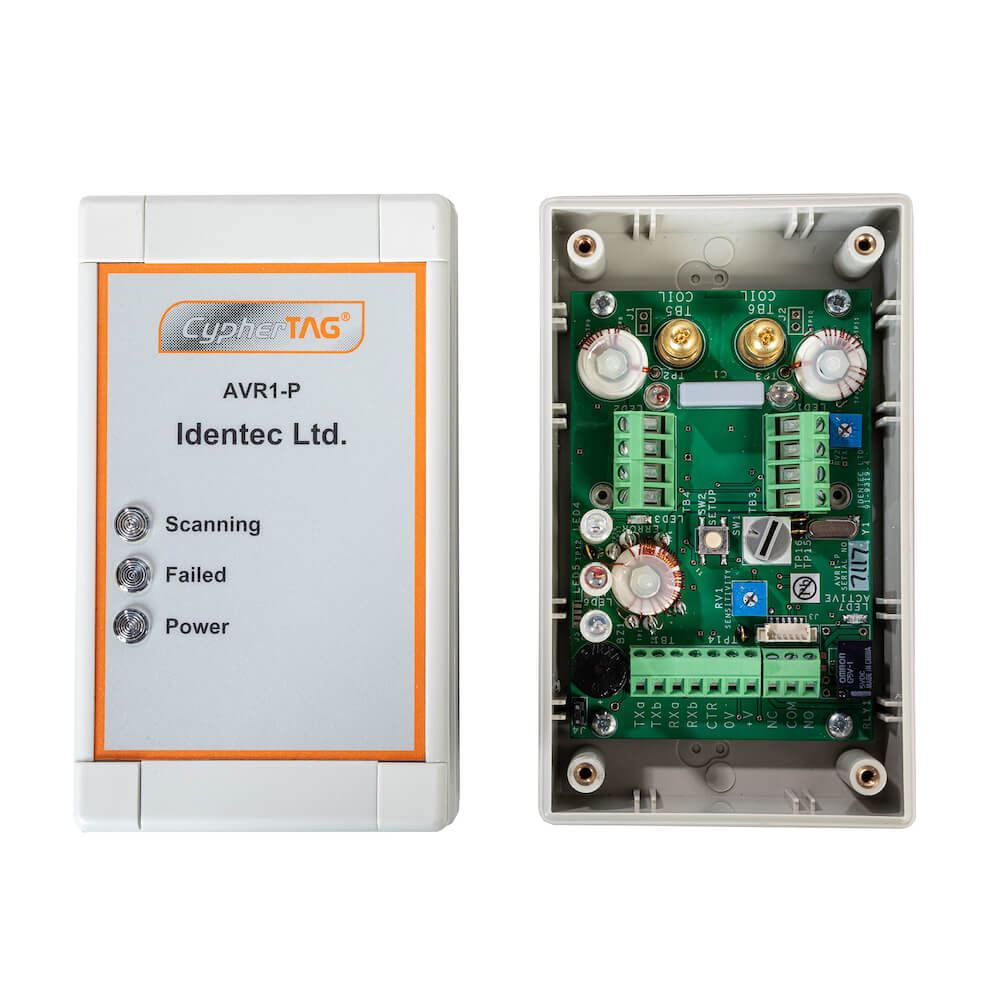

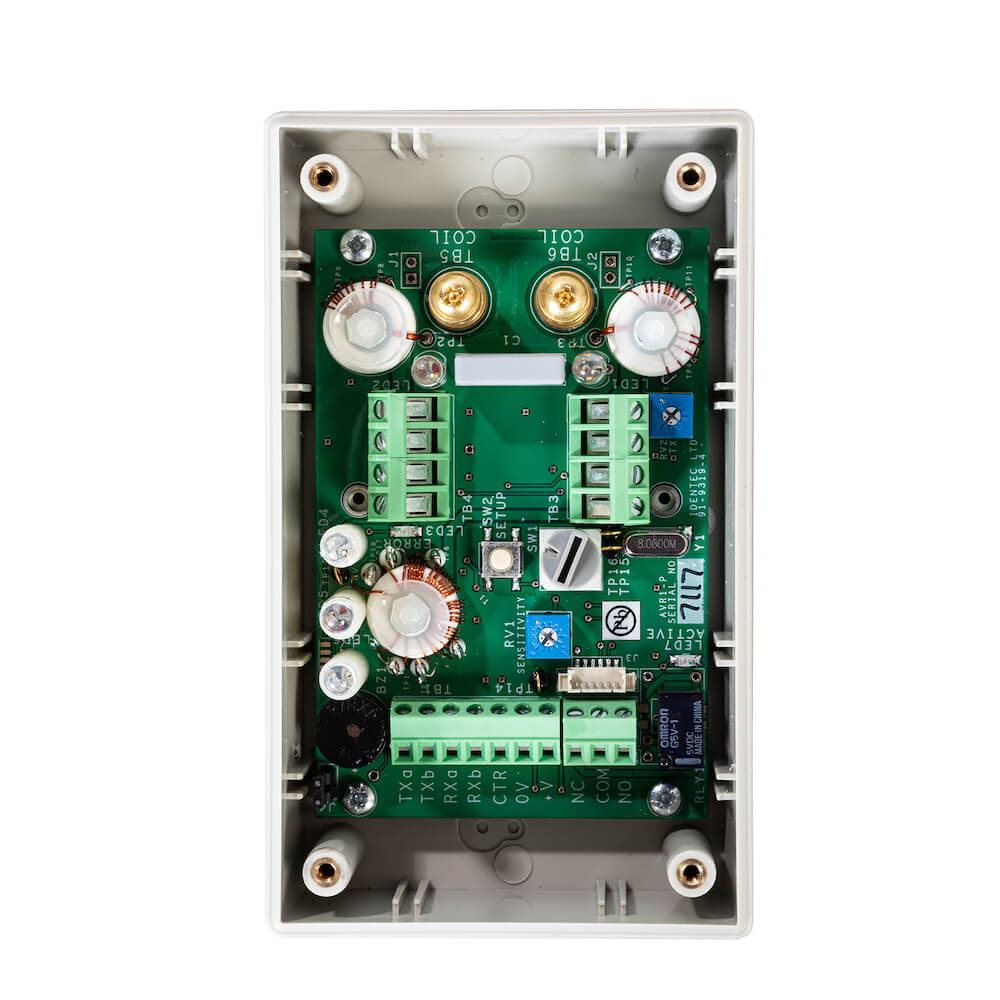

AVR1-P
Aerial Interface unit with Performance test tag
The AVR1-P is a combination of the AVR1 and TVP2 which can be used on all Cyphertag® RV1 and RVR1 readers. It offers all the same benefits as the TVP2 but without the need for an additional unit. Used in high security and safety-critical installations such as prisons where the continued operation of the reader must be monitored.
Technical Specification
Resources
Downloadable files containing technical information about AVR1-P
