Avr3 387x

AVR3

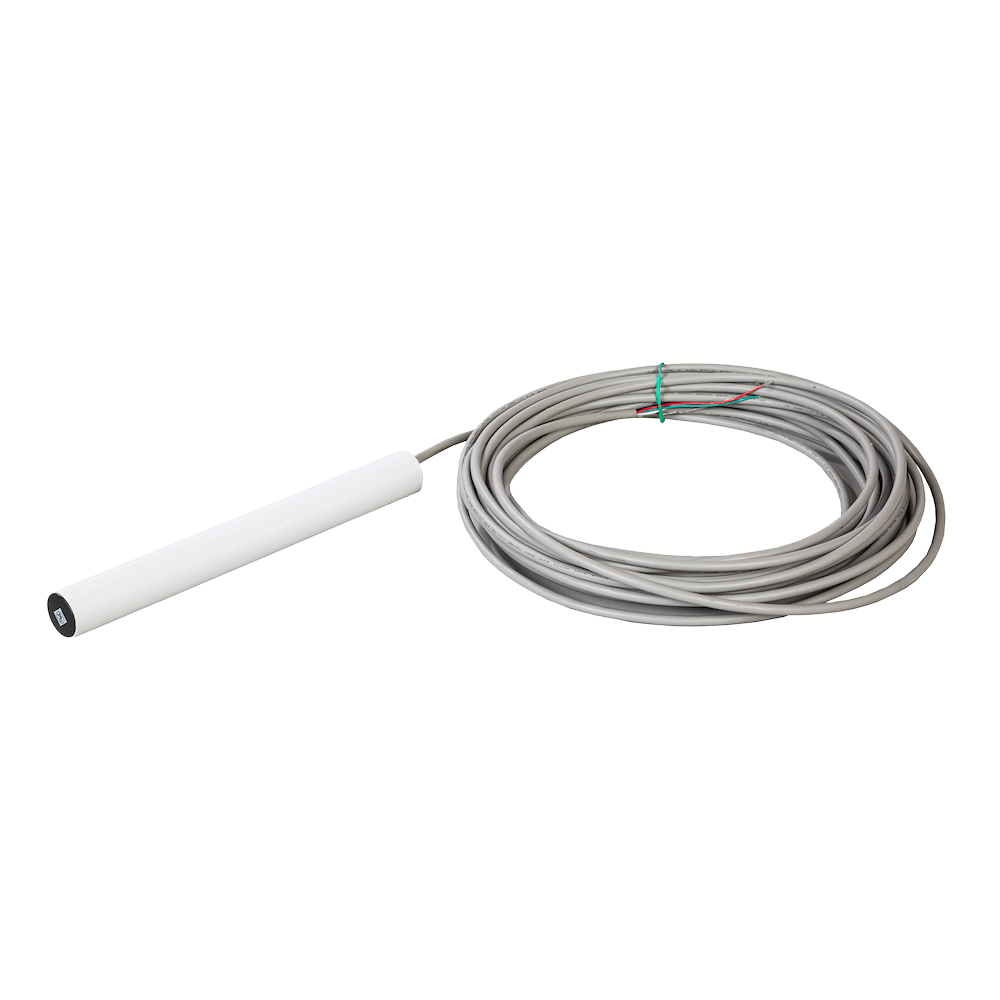

Cylindrical Receiver

This accessory enables the Cyphertag® readers (RV1 and RVR1) to be used as Split Tx/Rx readers.

The AVR3 enables the detection field to be shaped. The transmit function is performed by a separate loop antenna, the receive function is provided by the AVR3. It can be used to improve noise immunity as the receiver can be moved away from a noise source, significantly improving the reading range of a zone badly affected by electrical interference in the 4MHz band.

Features

The product is suitable for numerous applications, they include but are not limited to:

  • Configurable detection zone
  • Increase noise immunity

Technical Specification

Specification AVR1 Details
Power requirements 5V DC, (supplied by RV1-RVR1 reader)
Dimensions 185 x 20mm Tube
Weight 450g
Temperature range -20 to +60°C non condensing
Housing White PVC tube
