Tvp1

TVP1

Performance Test Tag

Designed to be used in situations including safety critical situations where the continued operation of the reader is essential and must be always monitored. The TVP1 Performance test tag ensures that the reader remains fully operational and gives an assurance that the desired reading range is being maintained.

Its main purpose is to raise an alarm should the reader, for whatever reason, fail to operate. However, its secondary purpose is to monitor the reading range and raise an alarm should the reading range be reduced significantly.

Features

  • Monitors reader detection zone integrity
  • Encrypted RF communication
  • Relay contact to indicate fault conditions
  • Maintenance free

Technical Specification

Specification TVP1 Details
Power requirements 5 - 12V, 100mA
Dimensions 117 x 85 x 35mm
Weight 150g
Temperature range -20 to +60°C non condensing
Housing Light grey ABS with Polycarbonate label

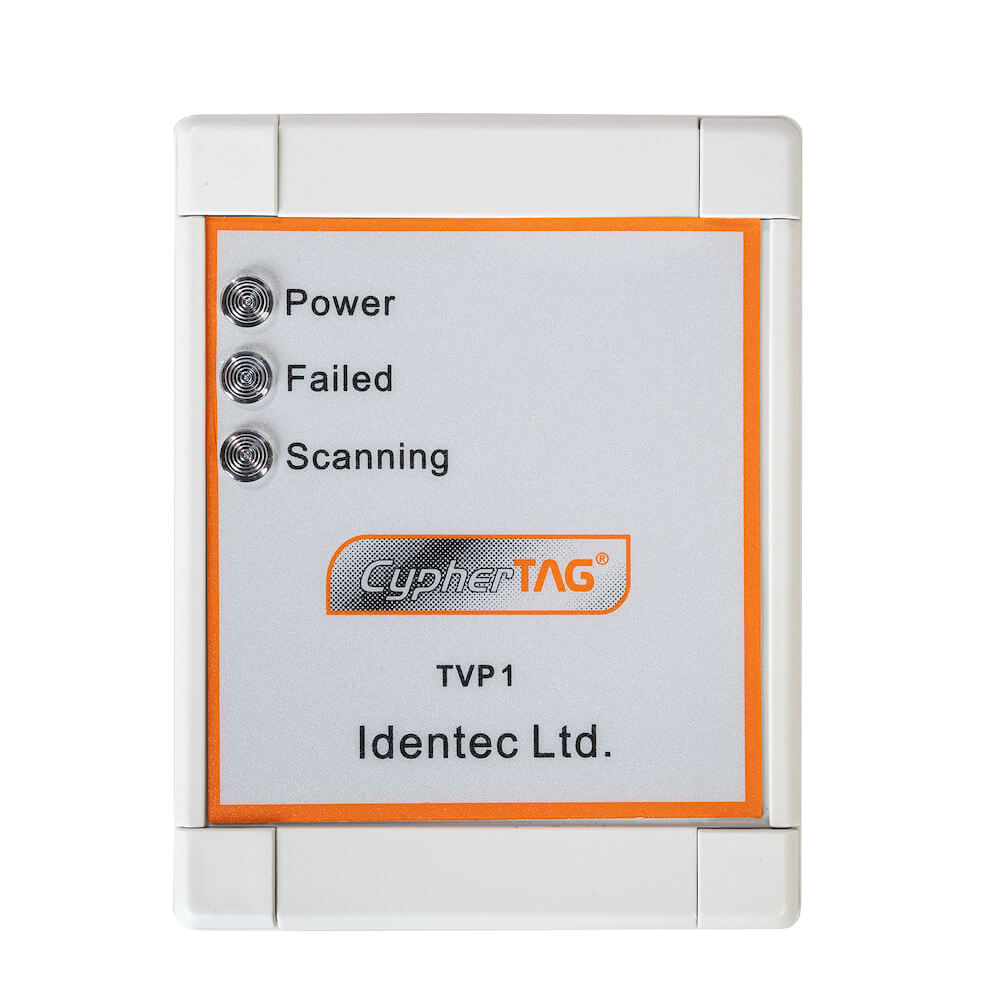

LED function RED - TVP1 Power
AMBER - TVP1 Failed
GREEN - TVP1 Scanning
Relay function NO - TVP1 Scanning
NC - TVP1 Failed
