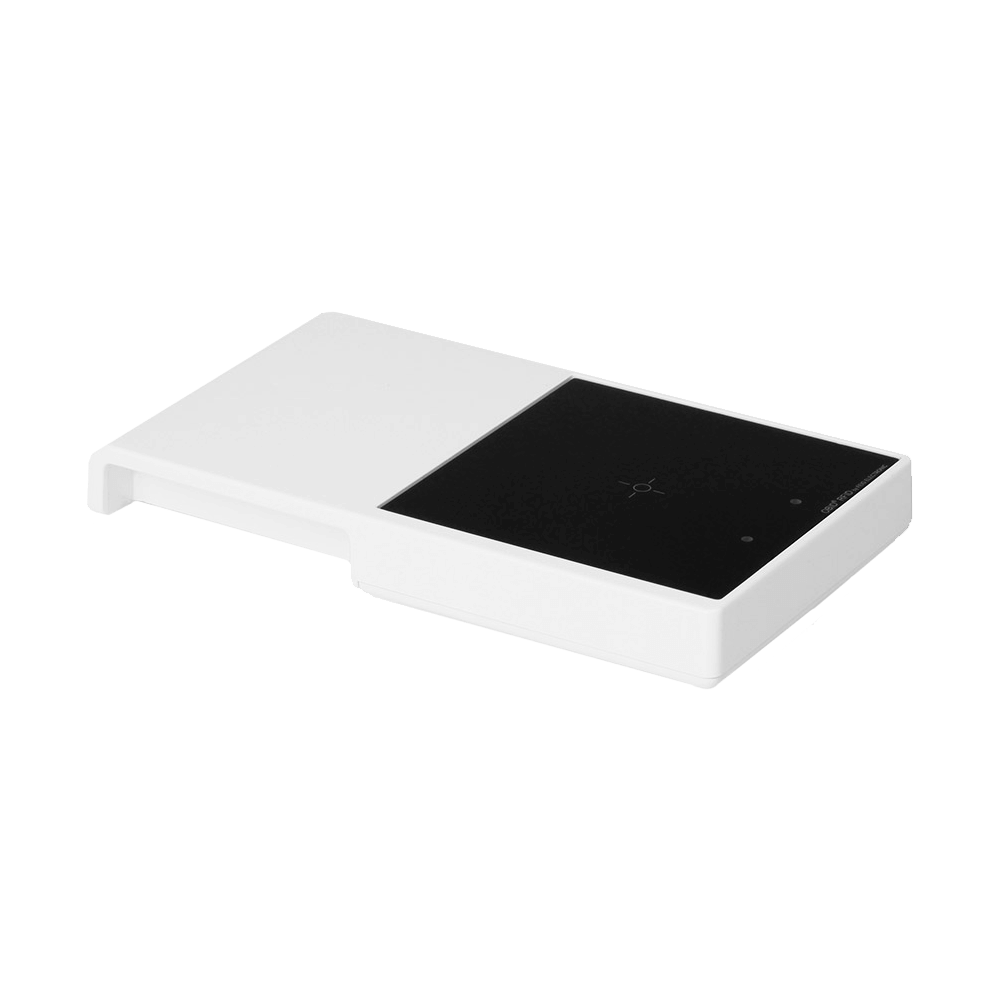

ID CPR30-USB

ID CPR30-USB is designed as a desktop device for contactless data exchange with common ISO 15693 and ISO 14443-A/-B compliant transponders.

Power supply and data exchange with a computer or other equipment is carried out via the USB interface.

Features

  • Desktop Reader to be used in offices or at the POS
  • Multi-tag Reader
  • ISO 15693 & ISO 14443-AV-B
  • Supports NFC Applications
  • PC/SC driver

Applications

Access Control

Convenient touch free technology to easily manage access to your locations.

Car Parking

Create an intelligent parking system where the entry and exit of cars are monitored, with vehicle or driver identification, or both.

Safety

Automatic staff registration for safety roll call or attendance registration through real-time alerts and accurate location information.

Article Tagging

Hands free tagging allowing complete hands-free access control, monitoring the whereabouts of assets.

Key Tagging

Safety tracking and key security with non-contact reading up to 3 metres to avoid key compromises.

Technical Specification

Feature Specification
Dimensions 144mm x 84mm x 18mm
Housing Plastic (ABA) / acrylic glass
Colour white / black
Weight about 105g
Enclosure rating IP 42
Operating frequency 13.56MHz
Transmitting power 100mW
Supply voltage 5V, USB Bus powered
Current consumption max. 150 mA
Supported transponders ISO 15693, ISO 14443-A*/**, ISO 14443-B**
Operation mode Polling-Mode
Antenna Integrated
Interface ISB Full Speed (12 MBit/s)
Indicators, optical 2 LED (green/orange)
Indicators, acoustic Buzzer, integrated

Temperature range

Operation

Storage



-20C up to 60C

-40C up to 85C

Relative humidity  95% (non-condensing)
