Tv7

TV7

The product is sutable for numerous applications.

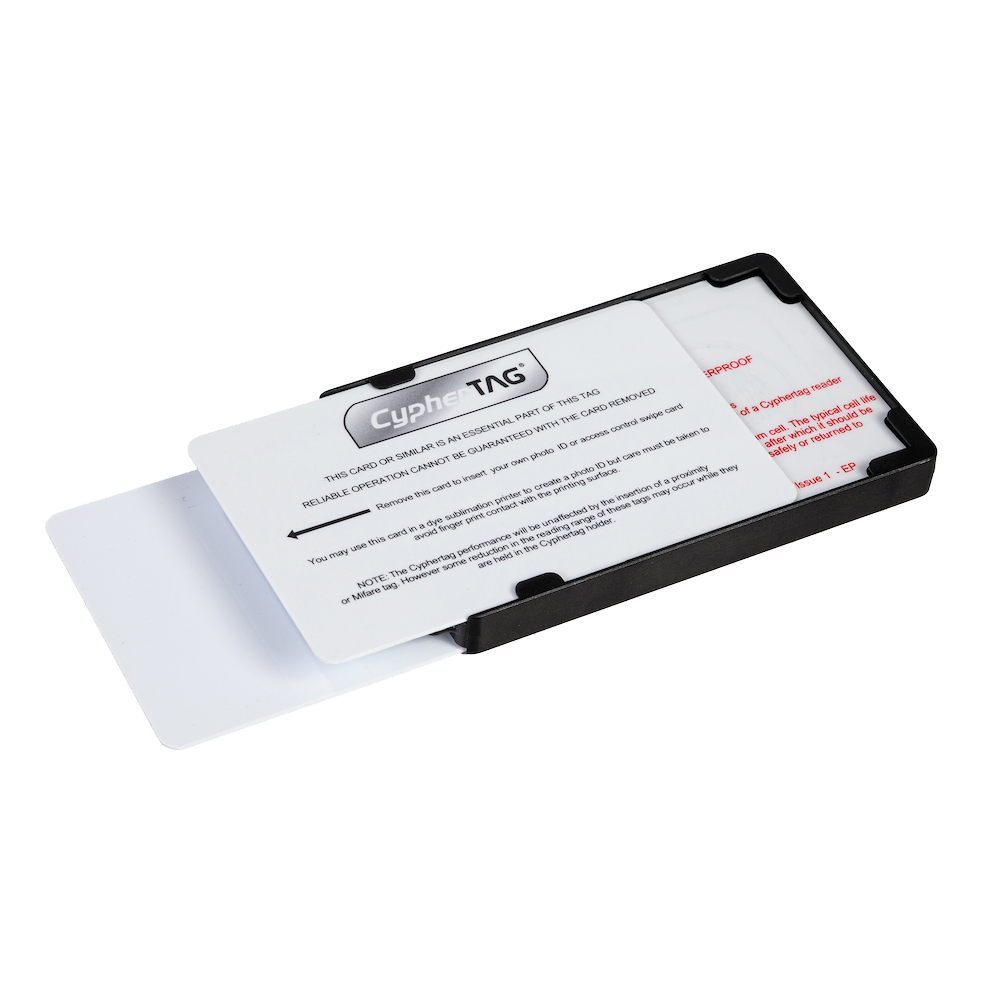

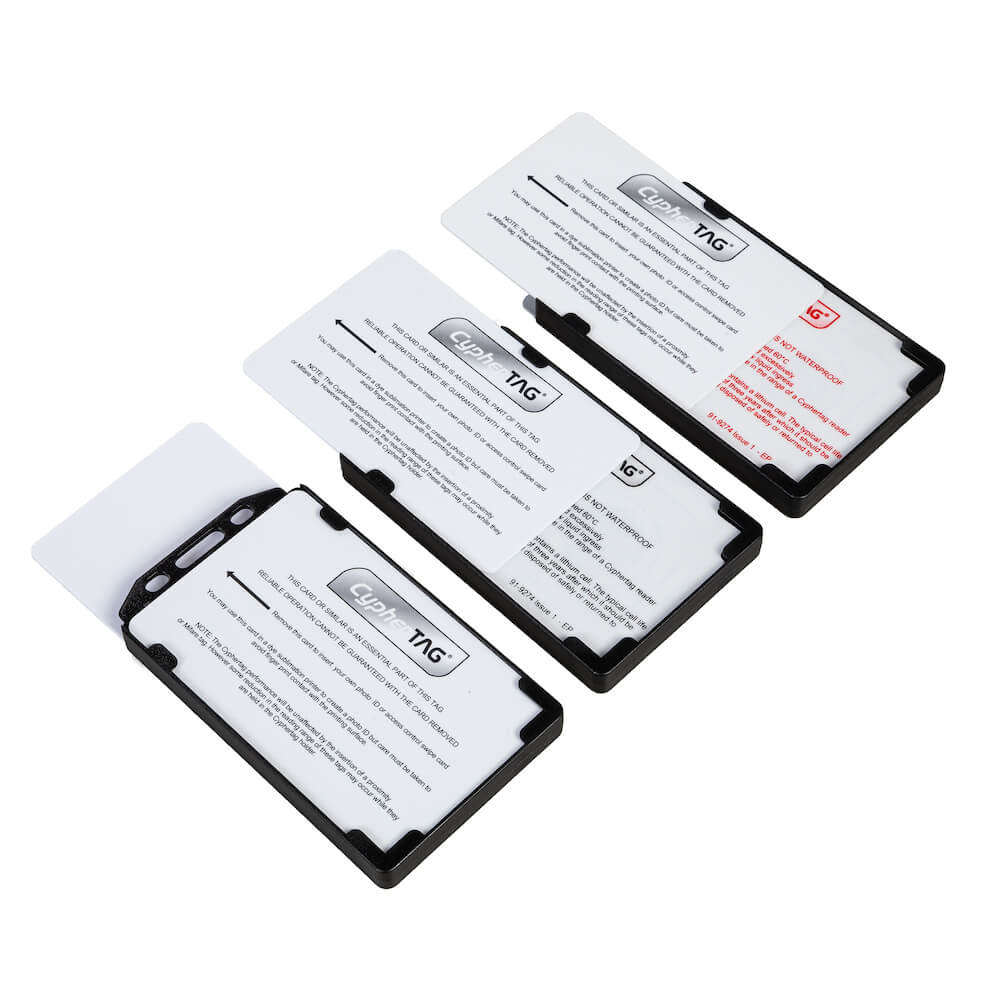

Dual photo ID tag suitable for general access control and hazardous applications where the users ID must be visible at all times. The TV7 tag is designed to co-exist with existing 13.56MHz passive cards.

  • Hands-free reading range (>3.0m)
  • Touch-Free Access Control
  • Inert until in reader detection zones
  • Battery low indicator via the reader
  • High fidelity reading (1:100 million error rate)
  • Dual ISO Photo ID card compatible
  • Compatible with 56MHz passive cards
  • Mass Evacuation
  • Personnel Safety
  • Personnel Identification
  • Atex approved

Cyphertag® tags can be simultaneously interrogated with no loss of fidelity. The RF communication between each tag and reader is scrambled to eliminate the chance of simulated tokens being used. Battery low indication is a standard feature.

Cyphertag's® patented technology offers many benefits to systems designers, integrators and end users. Not least of these is that the tags do not interfere with other electronic surveillance systems resulting in false alarms etc. The typical error rate for Cyphertag® is 1:100 million in worst case noise, this is significantly better than any other tag system. Cyphertag® tags can be supplied with a fixed one time programmed 16, 35 or 64 bit code. Strict factory audits ensure no two tags are issued with the same ID number.

The TV7 Cyphertag's® have a shelf life of 7 years or greater stored at 20°C. Operational life depends upon usage. However based upon 36 uses per day of 10 seconds each, or 6 minutes continuous interrogation per day, typical life at 20°C is 3 years or greater. All Cyphertag® product operates in the temperature range -20°C to +60°C.

The TV7 is available in standard and ATEX (Intrinsically safe) approved versions, the ATEX version is supplied exclusively through Davis Derby Ltd. (www.davisderby.com).

Applications

Access Control

Convenient touch free technology to easily manage access to your locations.

Safety

Automatic staff registration for safety roll call or attendance registration through real-time alerts and accurate location information.

Car Parking

Create an intelligent parking system where the entry and exit of cars are monitored, with vehicle or driver identification, or both.

Technical Specification

Coding: Unique 35 bit card ID
Physical Size:  96 x 56 x 9mm           33/4 x 23/16  x 3/8 in.
Weight:  50gm                          149/64  oz
Material: Body:
  Label:
  Photo ID
Black Polycarbonate
PVC
White PVC ISO standard insert
Temperature Specification: -20°C to +60°C               -4°F to 140°F
Humidity: 0 - 80% non condensing
Battery Type: Non-replaceable CR2430
Shelf Life: 7 years @ 10°C to 50°C
Battery Life: Typically >5 years based on 6 minutes per day
Battery Low: Provides typically 2-3 months notice of demise based on 6 minutes daily use
Read Range: Determined by reader aerial/antenna
Typically up to 3.0m (9.5 ft)
Speed of Reading: Determined by tag population and tag encoding
Typically 20 per second
Disposal: Return to Identec for safe disposal
