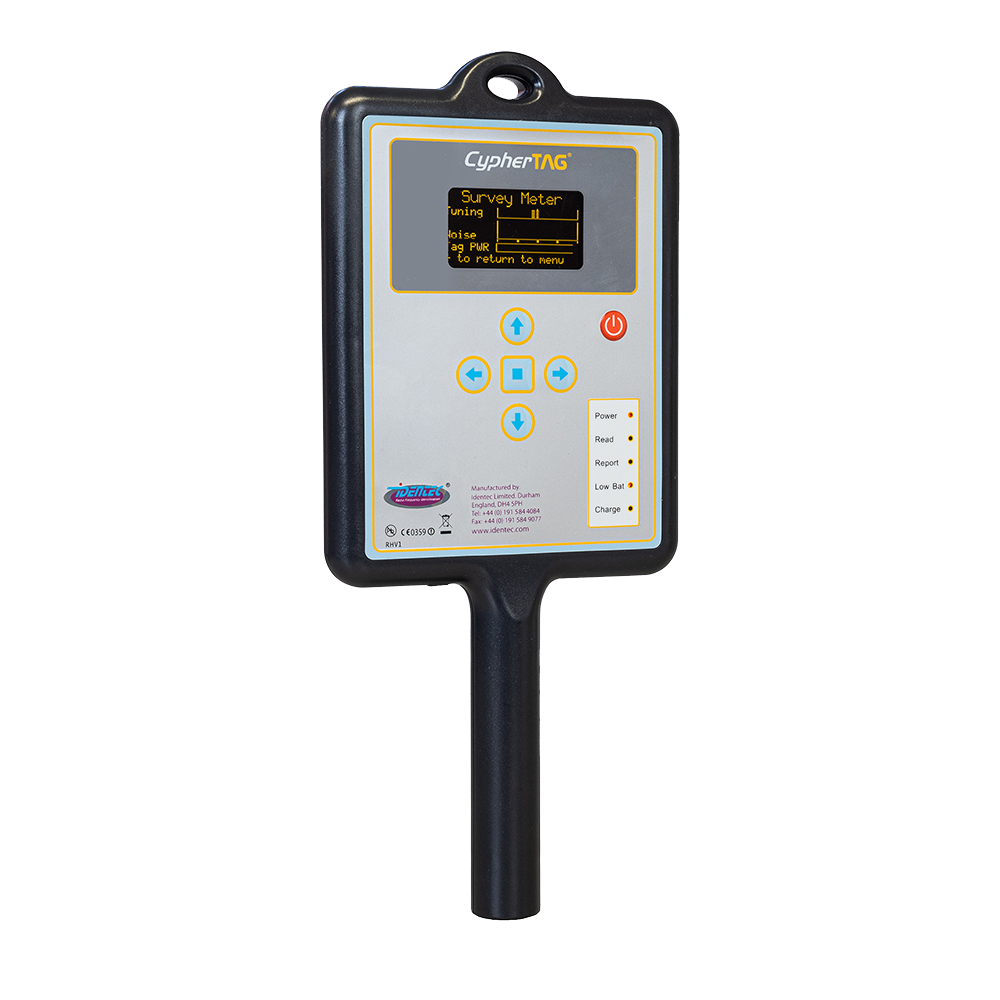

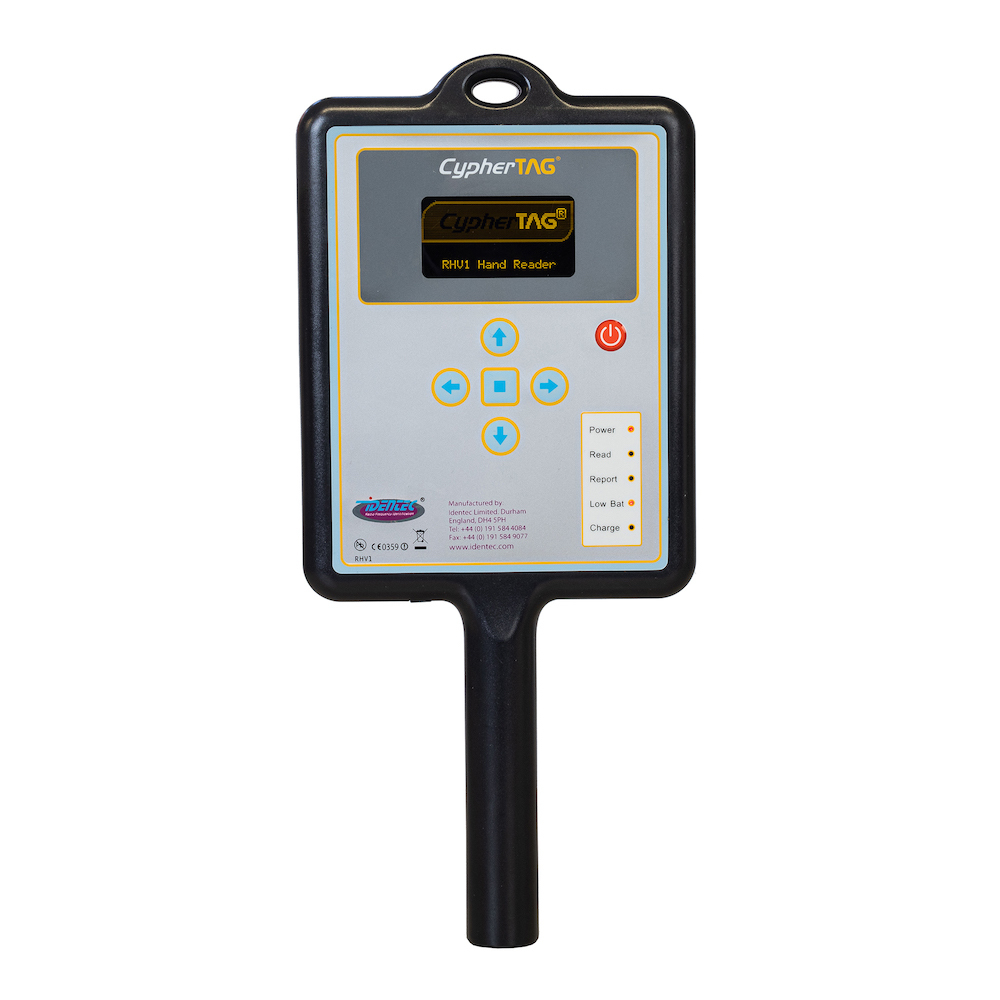

RHV1

Hand-held Reader

A rechargeable “battery operated” handheld reader, the RHV1 provides a tag detection range of up to 1.0m. This hand-held reader is a multi-function unit that incorporates a survey meter - which can benefit surveyors and installers when assessing where to fit loop aerials for the RV1 and RVR1 readers to enable optimum performance.

Features

  • Site survey Meter
  • Noise detector
  • Tag detector
  • Tag logging. Stores up to 10,000 tags
  • Field absorption meter
  • Configurable menu using keypad and display

Applications

Key Tagging

Safety tracking and key security with non-contact reading up to 3 metres to avoid key compromises.

Technical Specification

Specification Reader Details
Power requirements 12-26V DC
Dimensions Dependant on Specification
Weight Dependant on Specification
Temperature range -20 to +60°C non condensing
Housing Dependant on Specification
Relays 2 x Internally controlled relays
Output Formats 2 x Wiegand or Clock & Data & Serial (Base reader)
Terminations 2.5mm Removable terminal blocks

Resources

Downloadable files containing technical information about RHV1
