REV1

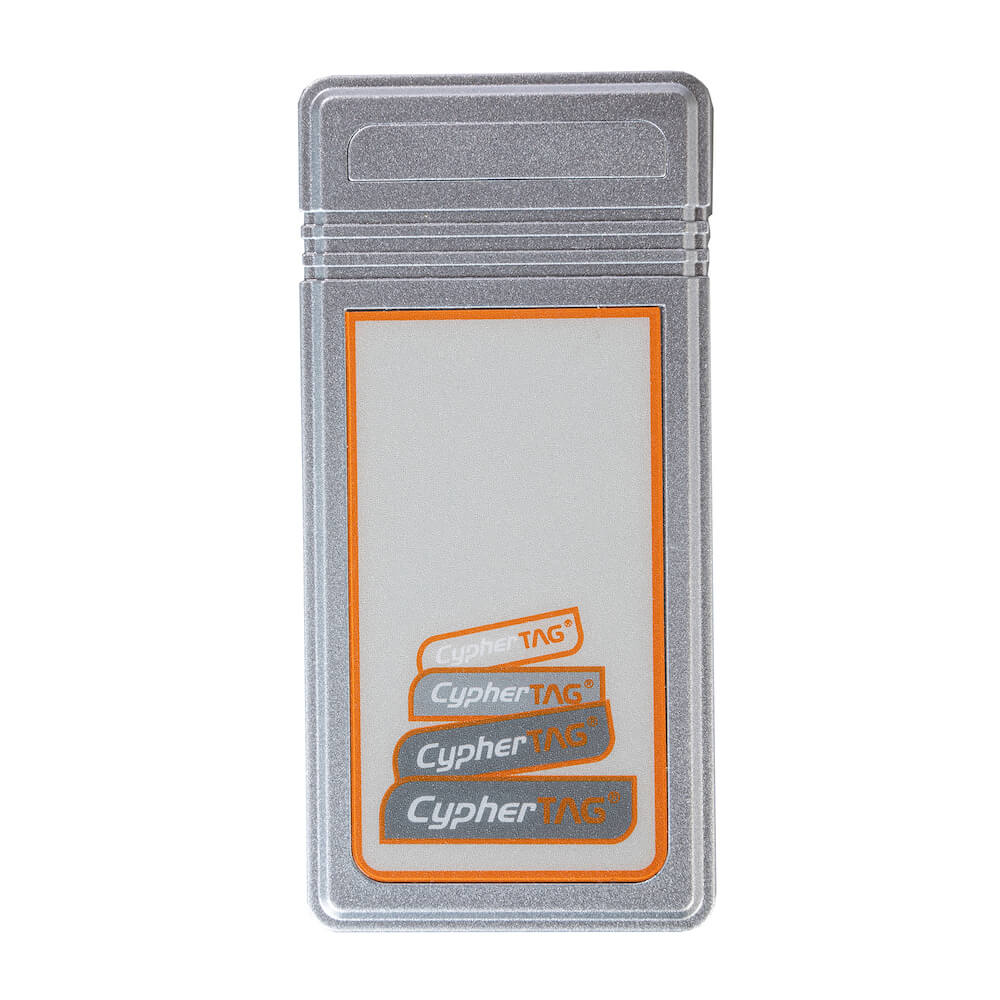

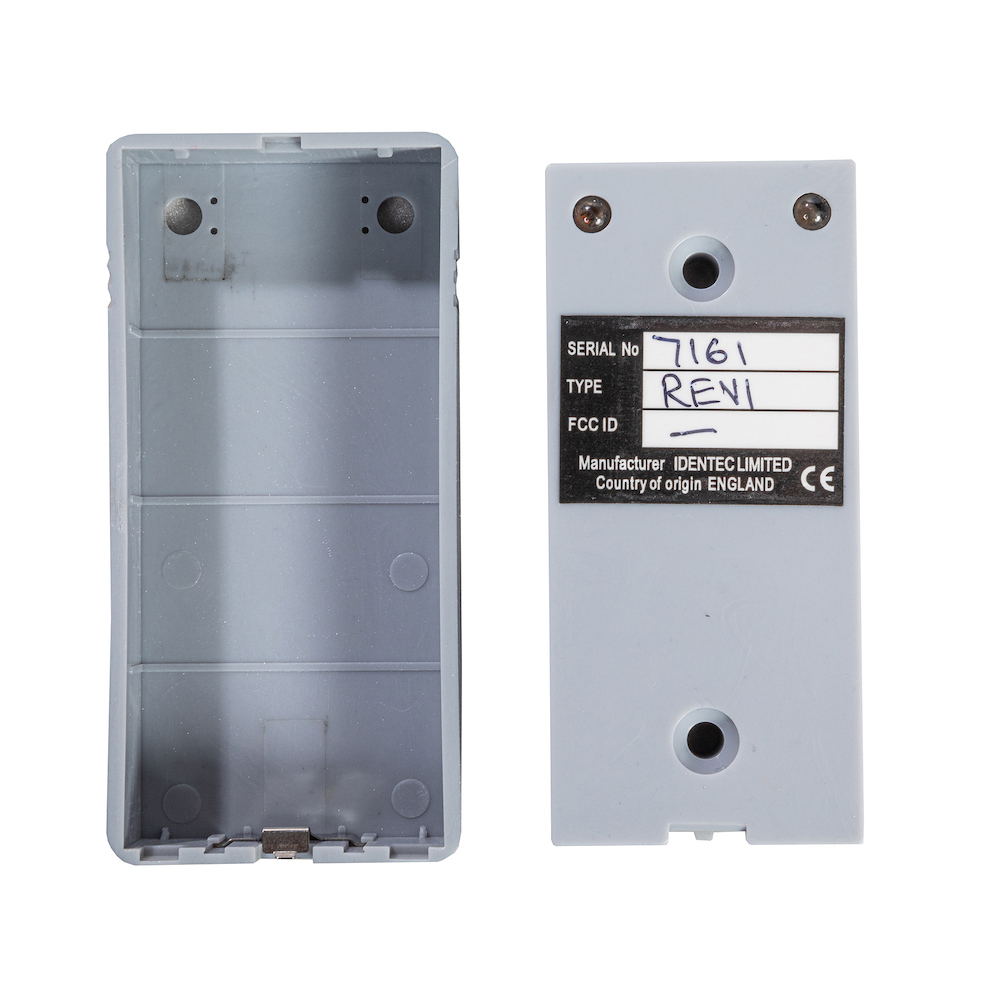

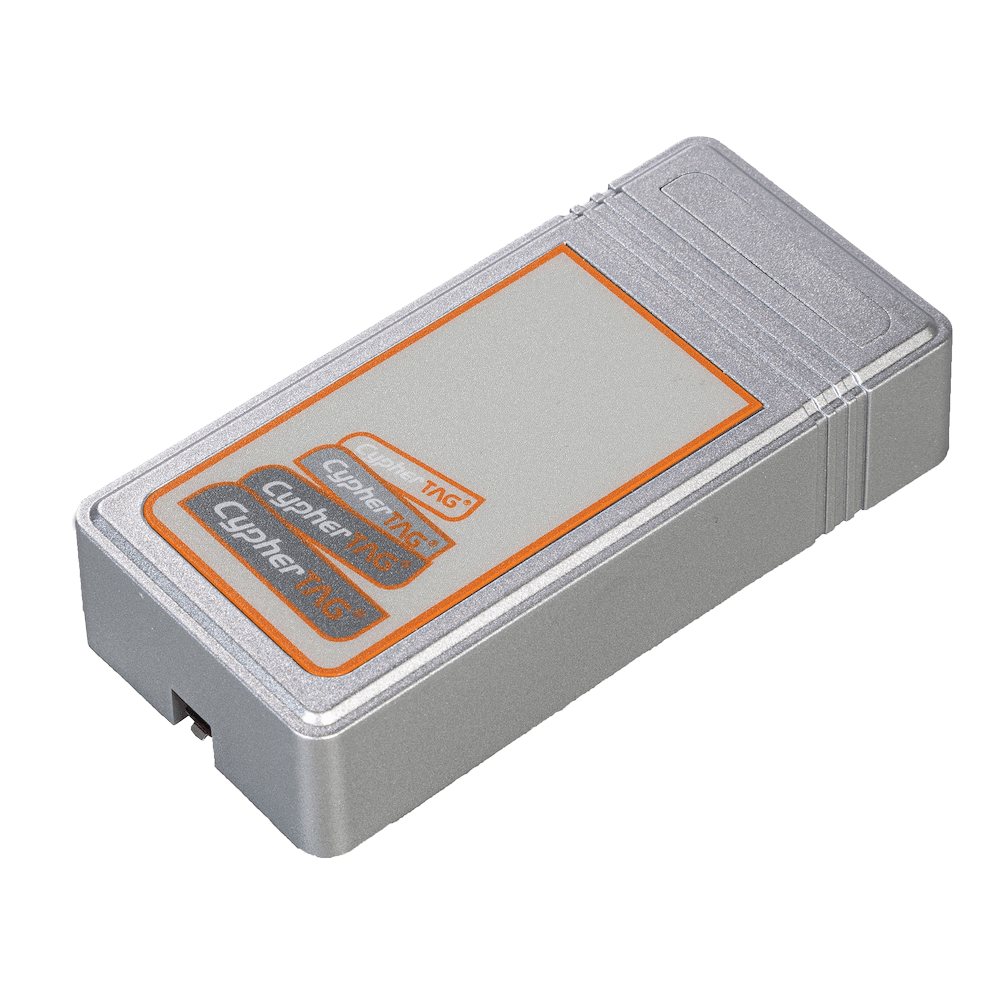

Cyphertag Mullion Reader

Designed to provide a short range, low-cost RFID reader option to complement our "Hands Free" readers. The REV1 is simple, quick and easy to install. Its small size means it can be mounted unobtrusively, for example on doors. The REV1 reader has a unique feature where it can be installed back-to-back for entry/exit control without any loss of detection.

Features

  • Proximity reader (Max 150mm range)
  • High fidelity reading (1:100 million error rate)
  • Secure digital data exchanges
  • Range selection (15cm, 7cm and 3cm)
  • Battery low indicator
  • Back to back mounting (for “in” and “out” control)
  • Screw terminal connectors

Applications

Access Control

Convenient touch free technology to easily manage access to your locations.

Car Parking

Create an intelligent parking system where the entry and exit of cars are monitored, with vehicle or driver identification, or both.

Technical Specification

Specification Details
Output Format: Wiegand or Clock and Data & RS232
Physical Size: 86 x 39 x 17mm          3 7/16 x 1 9/16 x 5/8 in.
Weight: 73gm                               2.56oz
Material: Body:
  Cover:
  Label
Silver ABS moulding epoxy filled
Silver ABS moulding with label recess
Light grey & orange polycarbonate (opt)
Temperature Specification: -20°C to +60°C               -4°F to 140°F
Humidity: 0 to 80% non condensing
LED Indication: RED internally controlled
GREEN externally controlled

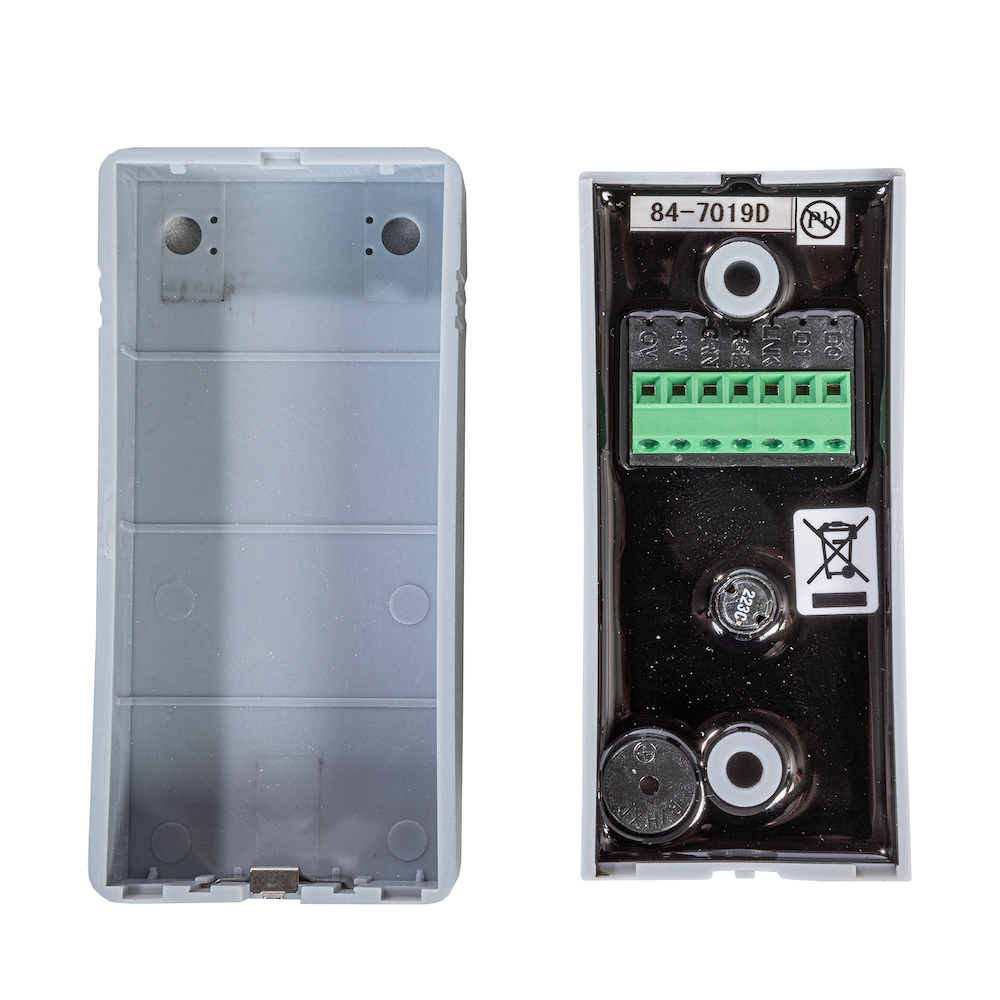

Terminations: 7 pin screw terminal
Power Requirements: 5 – 26 volts DC @ 50mA max.
Buzzer Operation: Firmware enabled
Buzz on Tag Read or Buzz for Battery Low
Read Range: Std. 150mm, reduced by link selection to 75mm or 20mm
Customised range options available
Speed of Reading: Multiple tag reading standard
Typically 3 tags per second
Back to Back Operation: Ensures uncompromised operation

Resources

Downloadable files containing technical information about REV1
