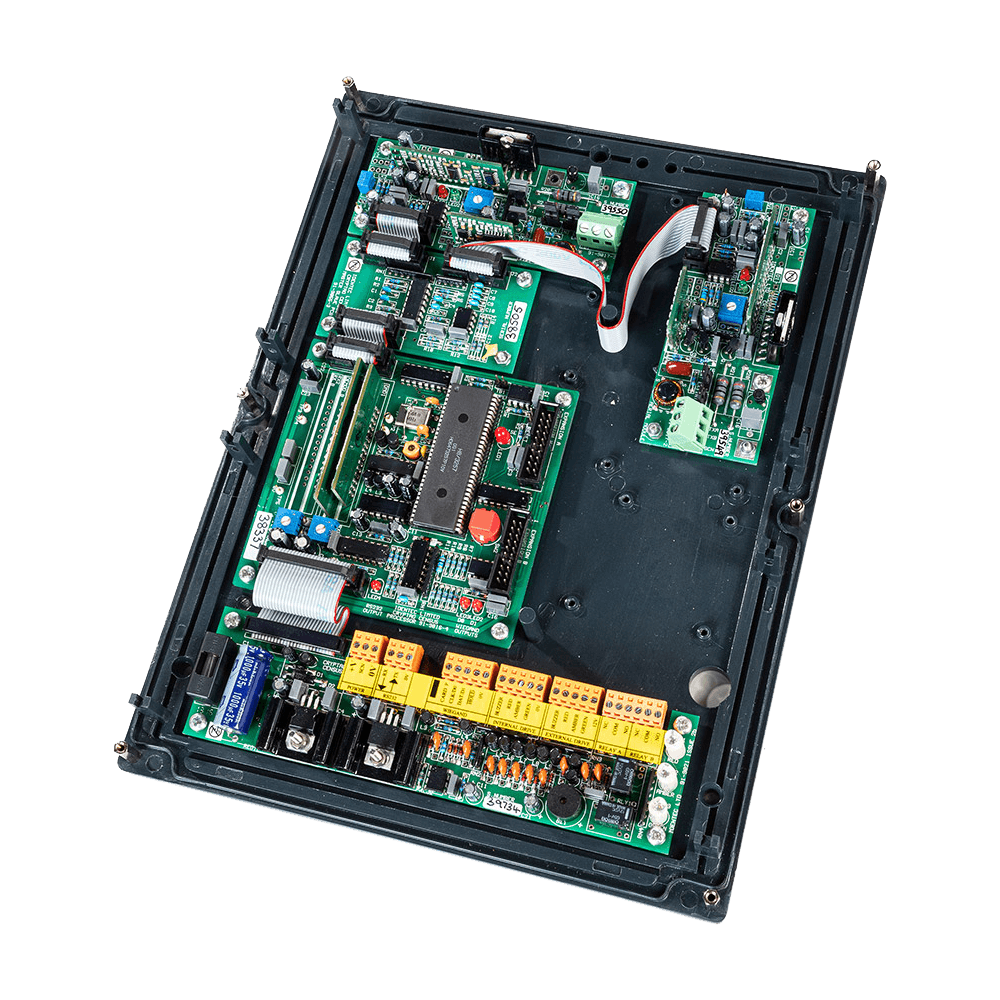

Cr1 Ms 00

CR1-MS

The detection zone of the CR1 can be increased by the use of the CR1-MS. The highest detection probability is achieved if the aerial detection zones are set to overlap by suitable placement of the two vertical aerials (e.g. using loops facing one another).

Alternatively, the two loops can be laid or fixed side by side to increase the size of the detection zone. The additional aerial does not affect the speed of reading tags. Reading ranges vary with the type of tag used, please refer to the Census® Products Matrix for further information.

All CR1 readers provide Wiegand or Clock & Data, as well as RS232 output. Advanced features include local alarm outputs, print options, and an optional counter display (See IDN1, EDN1 for further information.). MatchMaker reader firmware enables tag pairing.

The product is suitable for numerous applications, they include but are not limited to:

  • Evacuation Roll Call
  • Personnel Safety
  • Hands Free Access Control
  • Personnel Identification
  • Article Identification
  • Sports Timing.

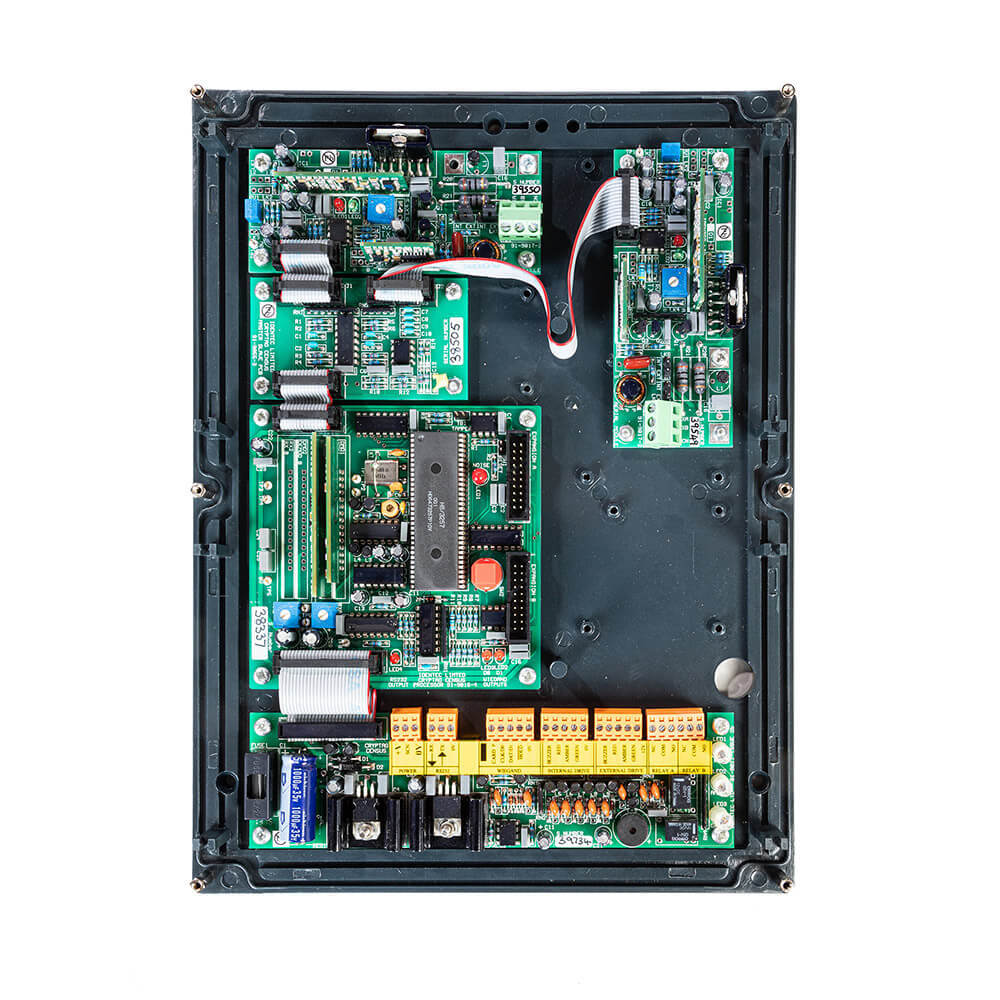

Cr1 Ms 01 Cr1 Ms 02

Applications

Access Control

Convenient touch free technology to easily manage access to your locations.

Safety

Automatic staff registration for safety roll call or attendance registration through real-time alerts and accurate location information.

Article Tagging

Hands free tagging allowing complete hands-free access control, monitoring the whereabouts of assets.

Car Parking

Create an intelligent parking system where the entry and exit of cars are monitored, with vehicle or driver identification, or both.

Technical Specification

Specification Details
Power requirements 12-26 Volts @ 400mA
Dimensions 300 x 230 x 80mm
Weight 1.6kg
Temperature range -20 to +60°C (non condensing)
Housing Charcoal Grey ABS case
LED function RED internally/externally controlled
AMBER internally/externally controlled
GREEN internally/externally controlled
Noise indication, Data Sent Indication
Output Formats Wiegand or Clock & Data & RS232
Terminations 2.5mm removable connectors

Resources

Downloadable files containing technical information about CR1-MS
