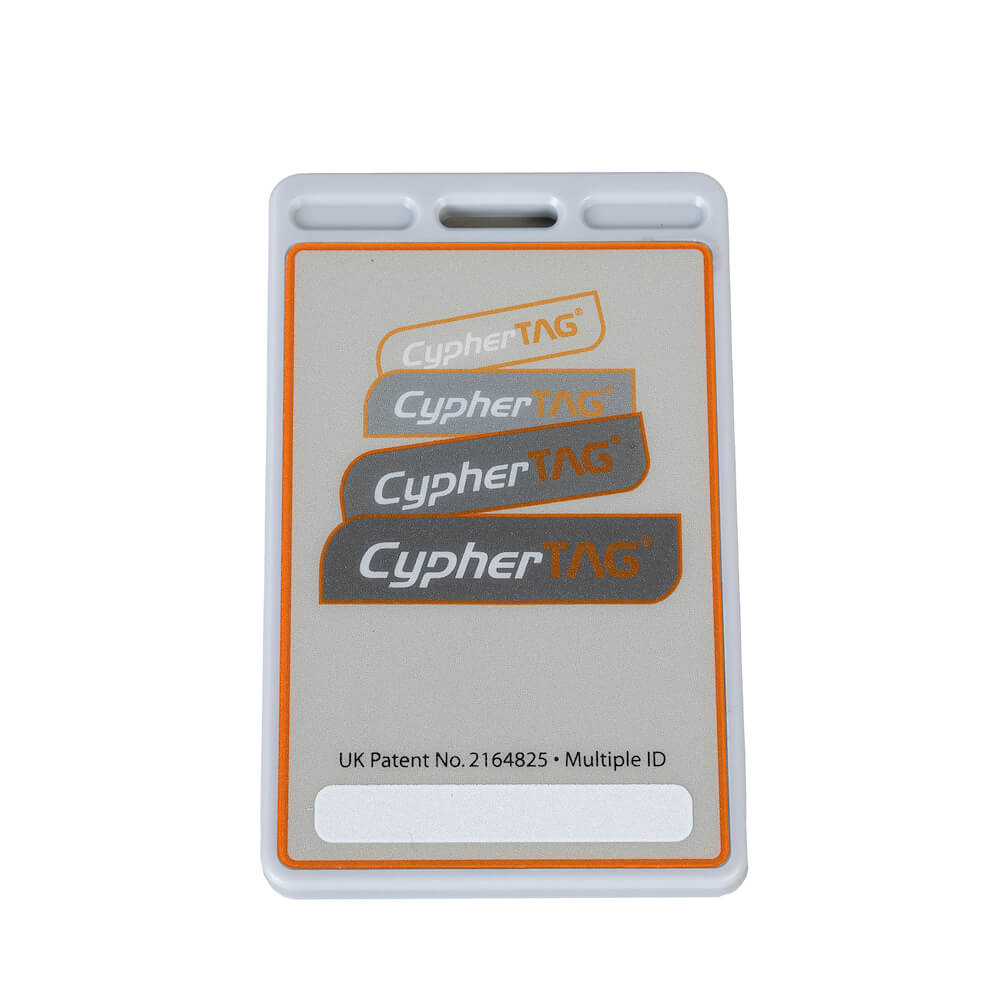

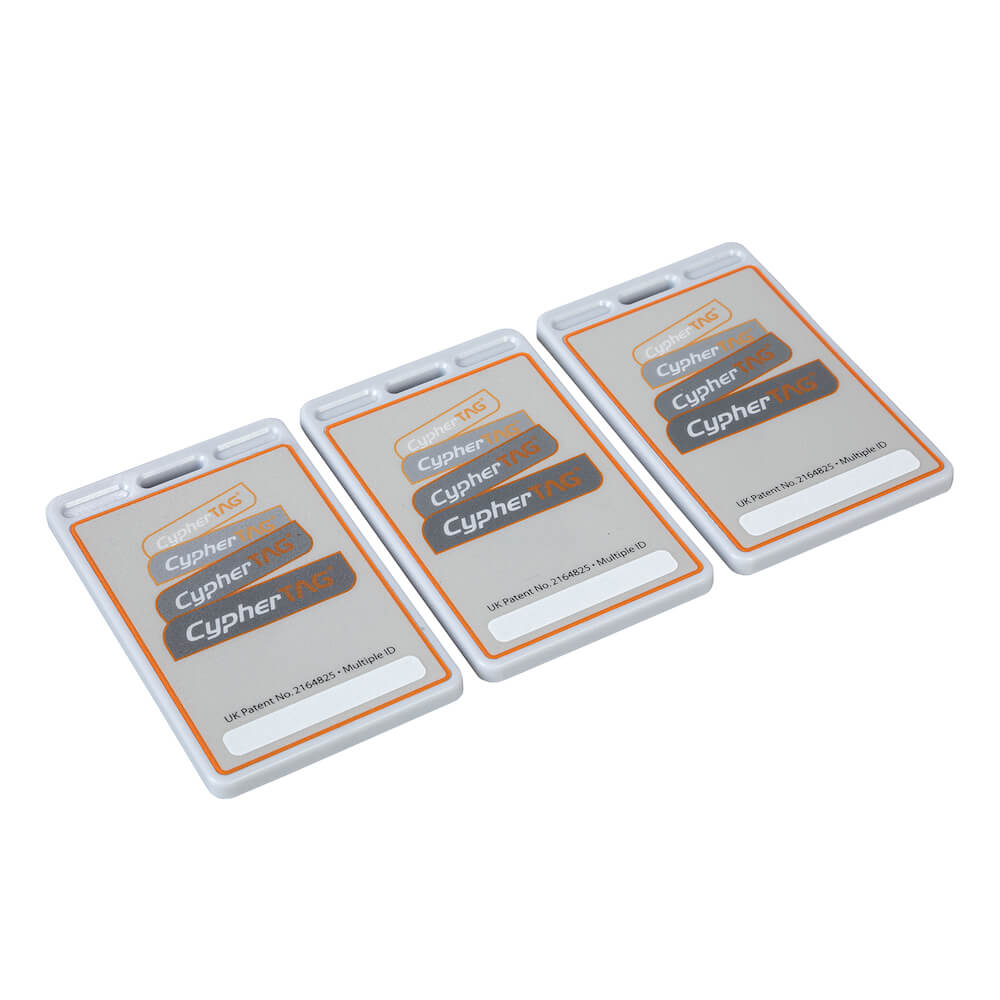

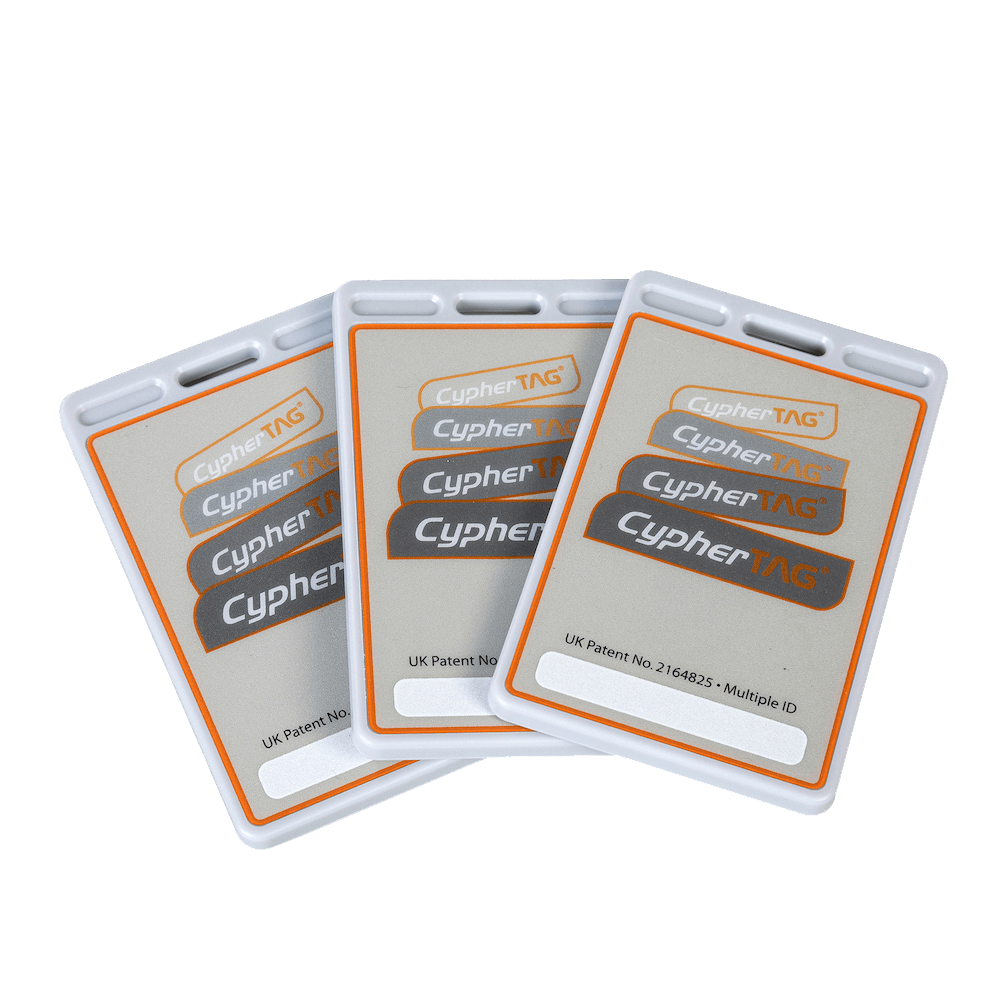

Tv1 042x


Personnel Tag

Personnel tag suitable for general access control and hazardous applications.

  • Hands-free reading range (>3.0m)
  • Touch free Access Control
  • Inert until in reader detection zones
  • High fidelity reading (1:100 million error rate)
  • Battery low indicator via the reader
  • Time and Attendance
  • Mass Evacuation
  • Personnel Safety
  • Personnel Identification
  • Car Parking Access
  • Atex approved

Cyphertag® tags can be simultaneously interrogated with no loss of fidelity. The RF communication between each tag and reader is scrambled to eliminate the chance of simulated tokens being used. Battery low indication is a standard feature.

Cyphertag's® patented technology offers many benefits to systems designers, integrators, and end users. Not least of these is that the tags do not interfere with other electronic surveillance systems resulting in false alarms etc. The typical error rate for Cyphertag® is 1:100 million in worst case noise, this is significantly better than any other tag system. Cyphertag® tags can be supplied with a fixed one time programmed 16, 35, or 64-bit code. Strict factory audits ensure no two tags are issued with the same ID number.

Operational life depends upon usage. However based upon 36 uses per day of 10 seconds each, or 6 minutes continuous interrogation per day, typical life at 20°C is 5 years or greater.

The TV1 is available in standard and ATEX (Intrinsically safe) approved versions, the ATEX version is supplied exclusively through Davis Derby Ltd. (


Access Control

Convenient touch free technology to easily manage access to your locations.


Automatic staff registration for safety roll call or attendance registration through real-time alerts and accurate location information.

Car Parking

Create an intelligent parking system where the entry and exit of cars are monitored, with vehicle or driver identification, or both.

Technical Specification

Coding: Unique 35 bit card ID
Physical Size: 86 x 54 x 4.5mm (3 3/8 x 2 1/8 x 3 3/16 in).

Body: Light grey ABS moulding

Label: Polycarbonate label insert (73 x 50 x 0.2mm)

Photo ID Label: White PVC "kiss cut" self-adhesive insert, ATEX version available with approved labels

Temperature Specification: -20°C to +60°C (-4°F to 140°F)
Humidity: 100% condensing
Battery Type: Sealed Lithium CR2430
Battery Low: Provides typically 2-3 months notice of demise based on 6 minutes daily use
Read Range: Determined by reader aerial/antenna. Typically up to 3.0m (9.5 ft)
Speed of Reading: Determined by tag population and tag encoding. Typically 20 per second.
Disposal: Return to Identec for safe disposal


Downloadable files containing technical information about TV1
