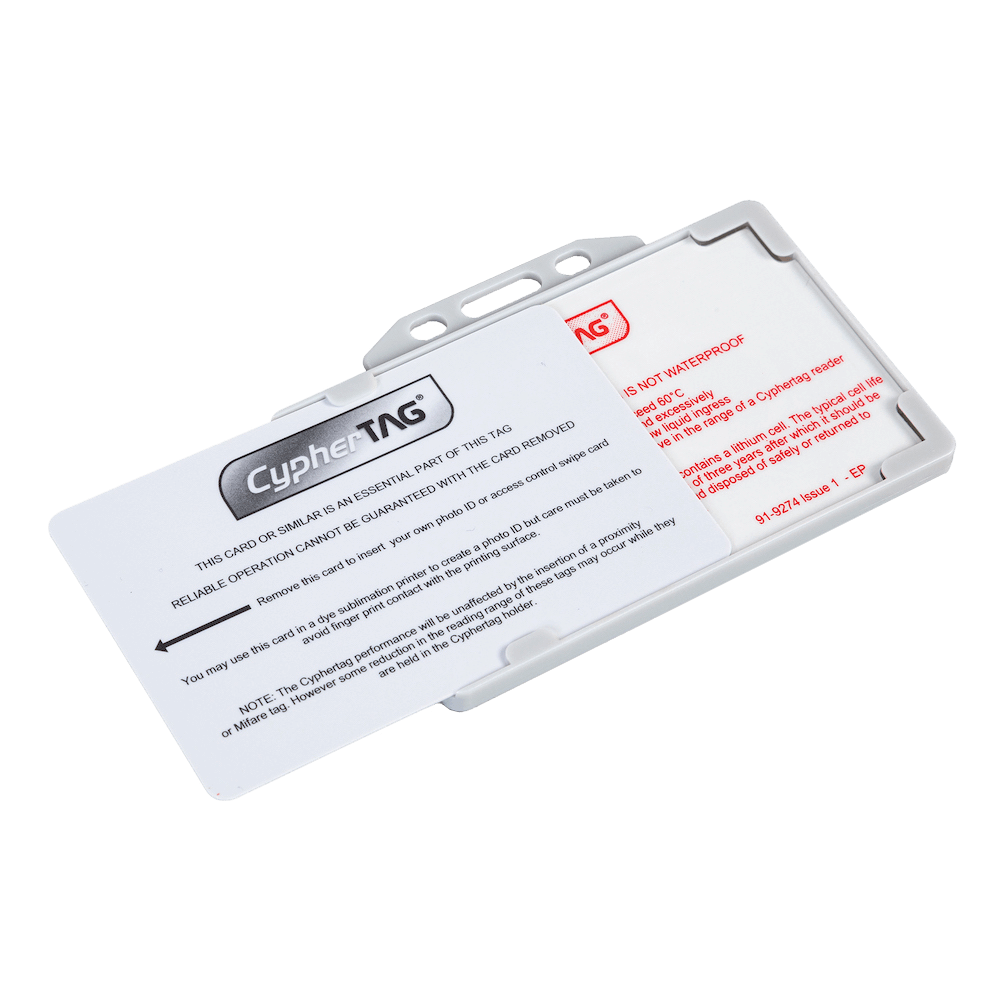

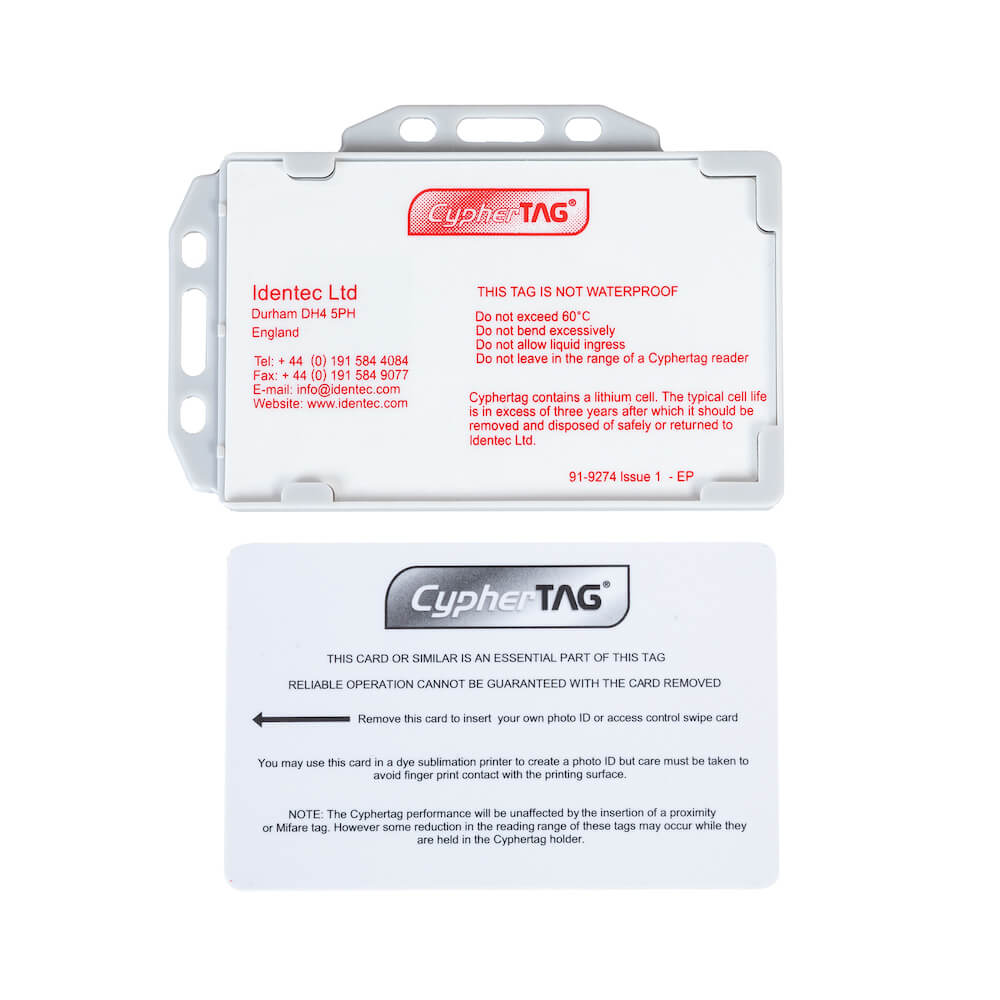

TV6-125

Photo ID Card Holder Tag

Photo ID tag suitable for applications where the users ID must be visible at all times. The TV6-125 tag is designed to co-exist with existing 125KHz passive cards.

  • Hands-free reading range (>3.0m)
  • Touch-Free Access Control
  • Inert until in reader detection zones
  • High fidelity reading (1:100 million error rate)
  • Replaceable battery
  • ISO Photo ID card compatible
  • Mass Evacuation
  • Personnel Safety
  • Personnel Identification
  • Compatible with 125KHz passive cards

Cyphertag® tags can be simultaneously interrogated with no loss of fidelity. The RF communication between each tag and reader is scrambled to eliminate the chance of simulated tokens being used. Battery low indication is a standard feature.

Cyphertag's® patented technology offers many benefits to systems designers, integrators, and end users. Not least of these is that the tags do not interfere with other electronic surveillance systems resulting in false alarms etc. The typical error rate for Cyphertag® is 1:100 million in worst case noise, this is significantly better than any other tag system. Cyphertag® tags can be supplied with a fixed one time programmed 16, 35, or 64-bit code. Strict factory audits ensure no two tags are issued with the same ID number.

The TV6 Cyphertag's® have a shelf life of 7 years or greater stored at 20°C. Operational life depends upon usage. However based upon 36 uses per day of 10 seconds each, or 6 minutes continuous interrogation per day, typical life at 20°C is 3 years or greater. All Cyphertag® product operates in the temperature range -20°C to +60°C.

Applications

Access Control

Convenient touch free technology to easily manage access to your locations.

Safety

Automatic staff registration for safety roll call or attendance registration through real-time alerts and accurate location information.

Car Parking

Create an intelligent parking system where the entry and exit of cars are monitored, with vehicle or driver identification, or both.

Technical Specification

Coding: Unique 35 bit card ID
Physical Size: 95 x 64 x 5mm           3 3/4 x 2 1/2 x 3/16 in.
Weight: 30gm                            1.05oz
Material: Body:
  Label:
  Photo ID Label
Light grey ABS moulding
PVC label – covering battery compartment
White PVC ISO standard insert
Temperature Specification: -20°C to +60°C               -4°F to 140°F
Humidity: 0 - 80% non condensing
Battery Type: Sealed Lithium CR2025
Shelf Life: 7 years @ 10°C to 50°C
Battery Life: Typically >2.5 years based on 6 minutes per day
Battery Low: Provides typically 1-2 months notice of demise based on 6 minutes daily use
Read Range: Determined by reader aerial/antenna
Typically up to 3.0m (9.5 ft)
Speed of Reading: Determined by tag population and tag encoding
Typically 20 per second
Disposal: Return to Identec for safe disposal
